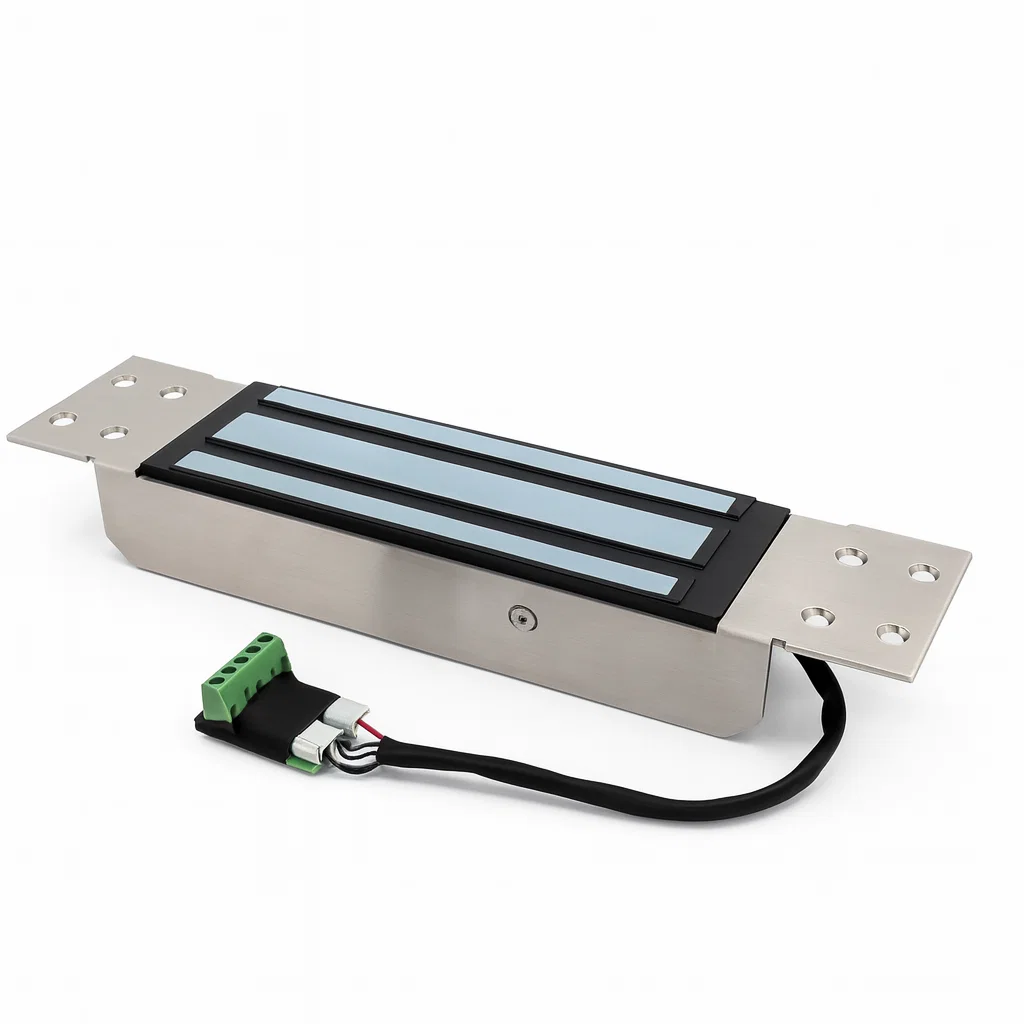

A500M Mortice Monitored Standard Maglock 1200LB/544KG
£82.00 exc VAT
- Operating voltage 12~24Vdc (Selectable)
- Stainless Steel Housing
- Electro-less nickel plated armature
- Holding force up to 1,200lbs (545Kg)
- Voltage tolerance: ±10%
- Current draw: 420mA at 12Vdc, 210mA at 24Vdc (at temperature 20°C)
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc)
- Operating temperature: -10~55°C (14 to 131°F) Humidity: 0~95% non-condensing
- Lock’s surface temperature: Current temperature ±20% (When power is on)
- Weight: 4.71kg (approx)
- W:64 x H:38 x L:288mm
DATASHEET
