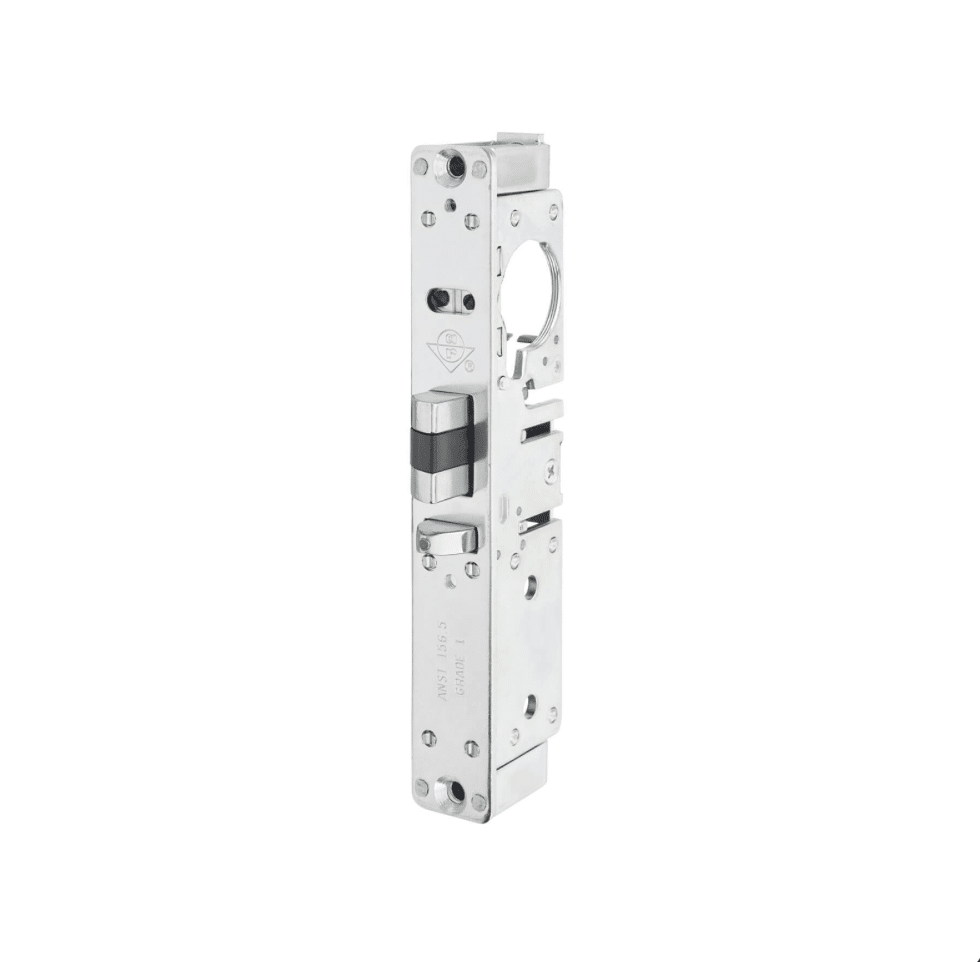

ADAMS RITE 4710-400 Round Cylinder Deadlatch – 173 X 25 X 54.4Mm (37Mm Backset)
The Adams Rite 4710 Heavy Duty Deadlatch Offers Flexible Traffic Control And An Good Level Of Security.
Nwhen Used In Emergency Exit Applications With A 4591 Paddle Handle The E8461 Ramped Jaw Strike Must Be Fitted To Conform With Bs En179:2008
£91.85 exc VAT
- Overall Case Size: 173mm x 25mm x 38.3mm - 22.2mm
- Backset (7/8)173mm x 25mm x 40.6mm - 24.6mm
- Backset (31/32")173mm x 25mm x 44.7mm - 28.6mm
- Backset (1 1/8")173mm x 25mm x 54.4mm - 38.1mm
- Backset (1 ½")
- Case: Steel with corrosion-resistant plating
- Backset: 22.2mm, 24.6mm, 28.6mm, 38.1mm
- Latch Bolt: 25.4mm x 12.7mm. ZA-27
- Zinc, Chrome Plated, Hardened Steel
- Internal Pins, plus Anti-Pick baffle
- Latch Throw: 12.7mm
- Cylinder: Any standard 29.4mm (1 5/32")
- Mortice Cylinder or Thumb-turn with MS cam
- Operation:Turn key/thumb-turn or handle to retract latch bolt
- Door Gap: 3 - 5mm
- Steel with aluminium faceplate
Features
- The Auxiliary bolt feature deadlocks the latch when the door is closed against the strike
- Operates using mortice cylinder, thumb-turn (both with M cam) or
range of Adams Rite furniture. - Can be used in conjunction with 7100 series Electric Strikes to provide remote access control
- Designed for use on aluminium doors
- The latch is interchangeable without stile modification with the MS 1850S Deadlock
- Latchbolt reversibibe and supplied non-handed unless specified
- Maximum operational door gap is 5mm
- Independently tested to 1 million cycles
- 3 year guarantee
