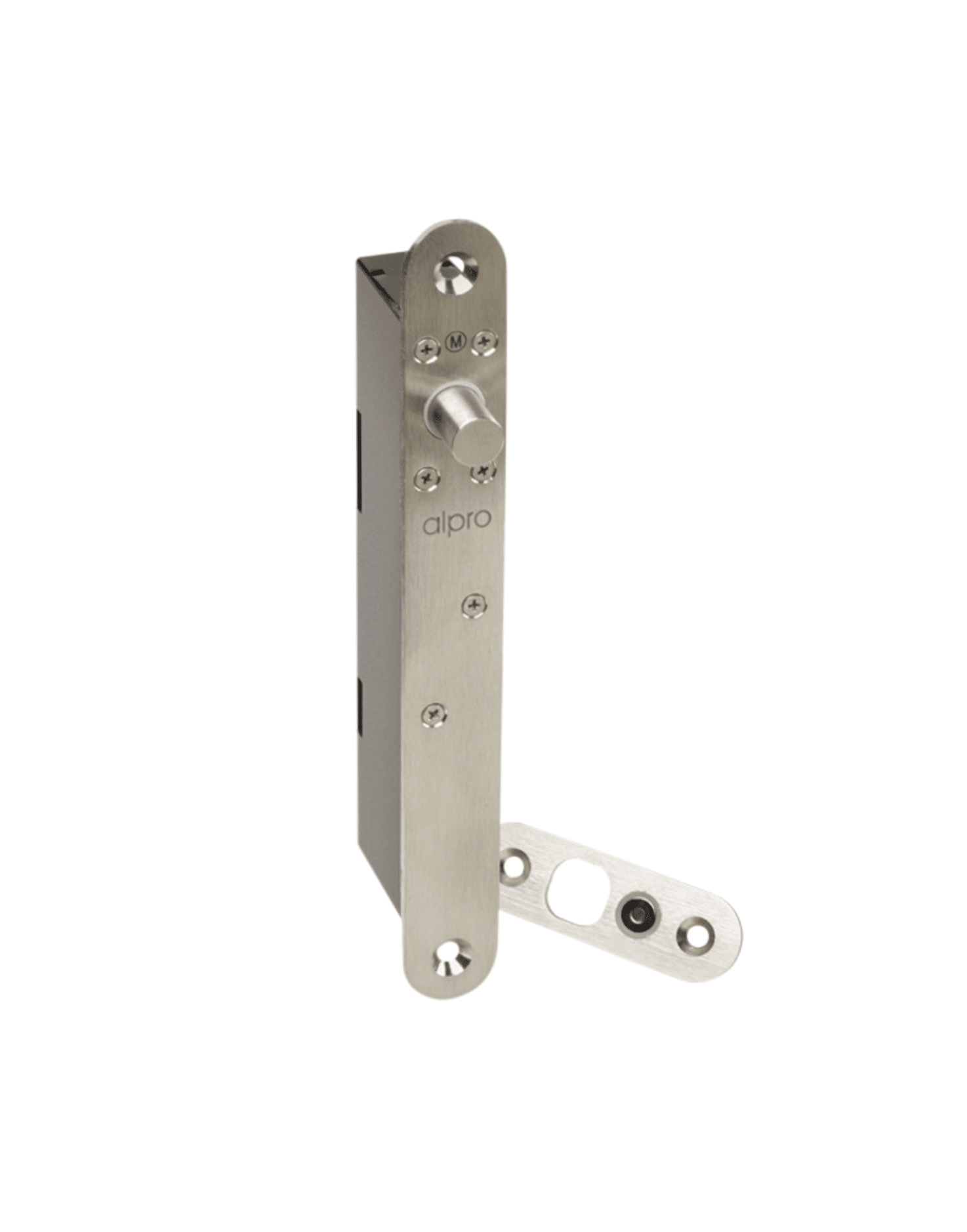

ALPRO BOLT DB25 12V/24V Dc Monitored Solenoid F/U – Key

High Physical Security
Holding force 1,000kg – automatic deadlocking
Bolt throw 16mm

Robust Construction
All stainless steel bolt of 12.7mm diameter,
linkages and springs. 3mm stainless steel faceplate and strike plates with fully enclosed mechanism.

Versatile Installation
Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.

Slimline Dimensions
210mm(L) x 25mm(W) x 42mm(D)
Back box 164mm(L) x 22mm(W) x 39mm(D)

Faceplates
Radius

Multiple Voltage Input
Any voltage from 12V DC -10% to 24V DC +15%. Complete with built in transient and reverse polarity protection and continuously rated solenoid.

Low Current Consumption
Volts Current – Activate Current – Hold (after 200ms)
12V DC 1100mA 210mA
24V DC 1000mA 90mA

Dual Monitoring
Bolt and Door position switches

Accessories
Stainless steel surface mount kit

Approvals
EN61000-6-1:2007
EN61000-6-3:2007

Built-in Access Control Module

Selectable unlock period – a field selector timer once the bolt is signalled to unlock. This enables traffic exiting 0, 3, 6 or 9 seconds in which to open the door before it automatically locks. See Anti-Tailgate.

Multiple auto relock function – when relocking the bolt makes 9 locking attempts over 18 seconds. Change in the Bolt Position Switch status indicates that the door has been locked.  Fail open/PTL models only.

Multiple unlock function – in fail secure/PTO mode 5 attempts to unlock door at 2 seconds intervals.

Anti-Tailgate – once the door has been pushed open and closed during the chosen unlock period, the bolt will immediately relock.

DATASHEET

ALPRO Bolt DB25
