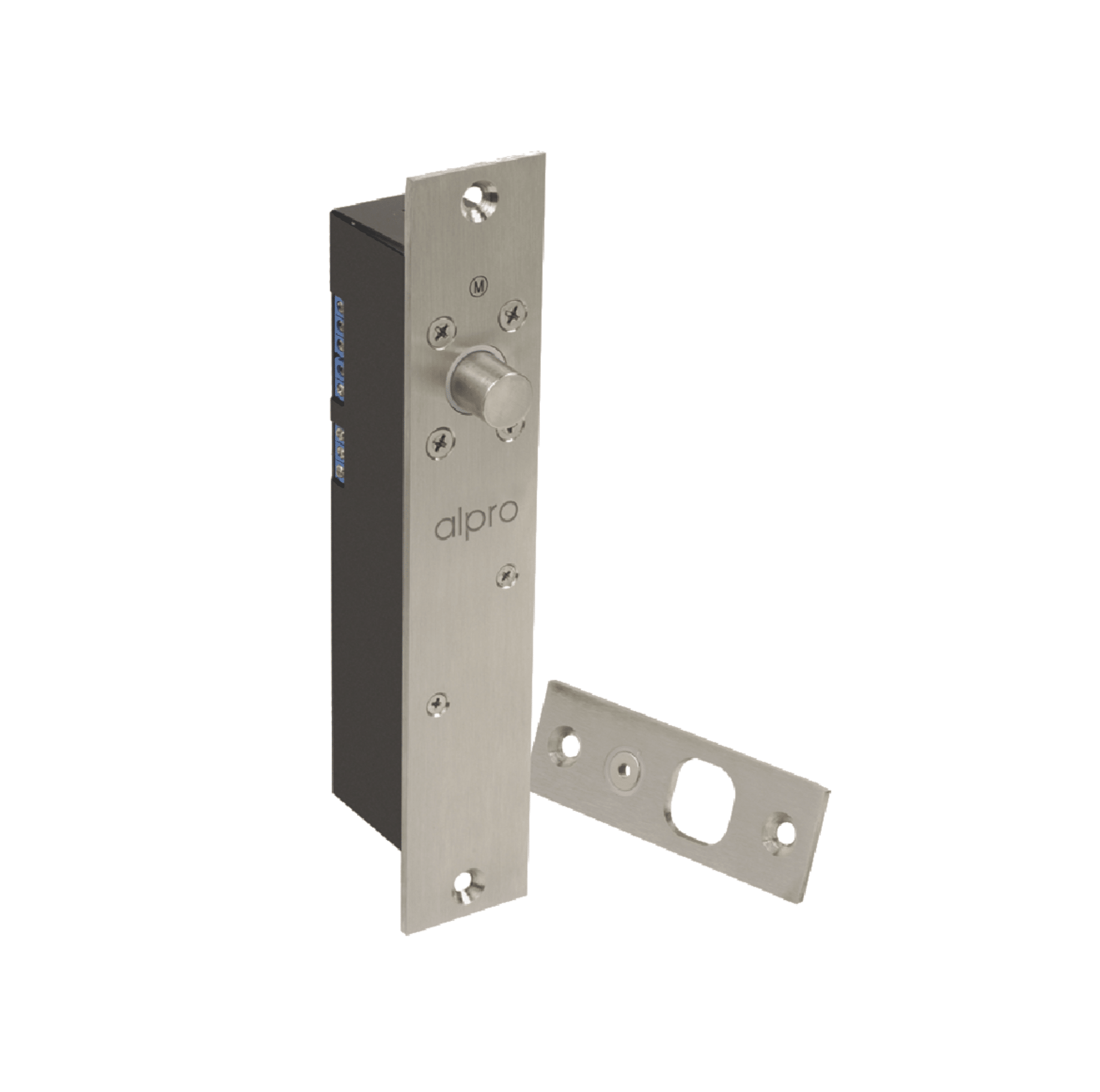

ALPRO DB38 12V/24V Dc Monitored Solenoid Bolt – F/U 38Mm – Key

£628.35 exc VAT

SKU: DB38 F/U 33MM KEY Category: SOLENOID BOLTS Brand: ALPRO

Specifications

The Alpro DB38 electric deadlocking bolt incorporates the latest design innovations to be applied to the manufacture of a transverse action deadlocking solenoid bolt. This electric deadlocking bolt offers the highest level of security, quality electronic ingenuity as the DB25 but with increased strength primarily achieved by utilising a larger diameter bolt pin, the DB38 is the preferred option when high physical strength is needed.

Features

5 year guarantee
14.2mm diameter bolt pin
Bolt throw 14mm
Holding force 2000kg - automatic deadlocking

High Physical Security
Holding force 2,000kg – automatic deadlocking. Bolt throw 14mm.

Robust Construction
All stainless steel bolt pin of 14.2mm diameter, linkages and springs. 3mm stainless steel faceplate and strike plates with fully enclosed mechanism.

Versatile Installation
Mortice mount horizontally or vertically, on single or double action doors. Surface mount with the aid of the DB38 accessories, including mounting onto glass.

Physical Dimensions
203mm (L) x 37.5mm (W) x 44mm (D)

Multiple Voltage Input
Any voltage from 12V DC – 24V DC
Thermal overheating protection, complete with built in transient and reverse polarity protection and continuously rated solenoid.

Low Current Consumption
Volts Current – Activate Current – Hold (after 200ms)
12V DC 1500mA 230mA
24V DC 1400mA 90mA

Dual Monitoring
Bolt and door position switches

Accessories
Strike box and housing kit
Stainless steel strike plate with square hole
Glass surface mount kit dress plate

Approvals
EN 61000-6-3 : 2021
EN 61000-4-2 : 2009
EN 61000-4-8 : 2010
EN 61000-4-3 : 2020
EN 61000-4-6 : 2014

Surface mounting a lock and/or strike with the aid of a DB38 housing offers more flexibility in installation and makes securing glass doors possible. Dress plates are offered to give a ‘clean’ finish when a housing has been installed onto glass. Both the housing and dress plate are supplied with self-adhesive tape for instant application to glass doors and frames.

Built-in Access Control Module
Selectable unlock period – a field selector timer once the bolt is signalled to unlock. This enables traffic exiting 0, 3, 6 or 9 seconds in which to open the door before it automatically relocks. See Anti-Tailgate.
Multiple auto relock function – when relocking the bolt makes 9 locking attempts over 18 seconds. Change in the Bolt Position Switch status indicates that the door has been locked. Fail safe models only.
Multiple unlock – in fail secure mode 5 attempts to unlock door at 2 second intervals.
Anti-Tailgate – once the door has been pushed open and closed during the chosen unlock period, the bolt will immediately relock.
