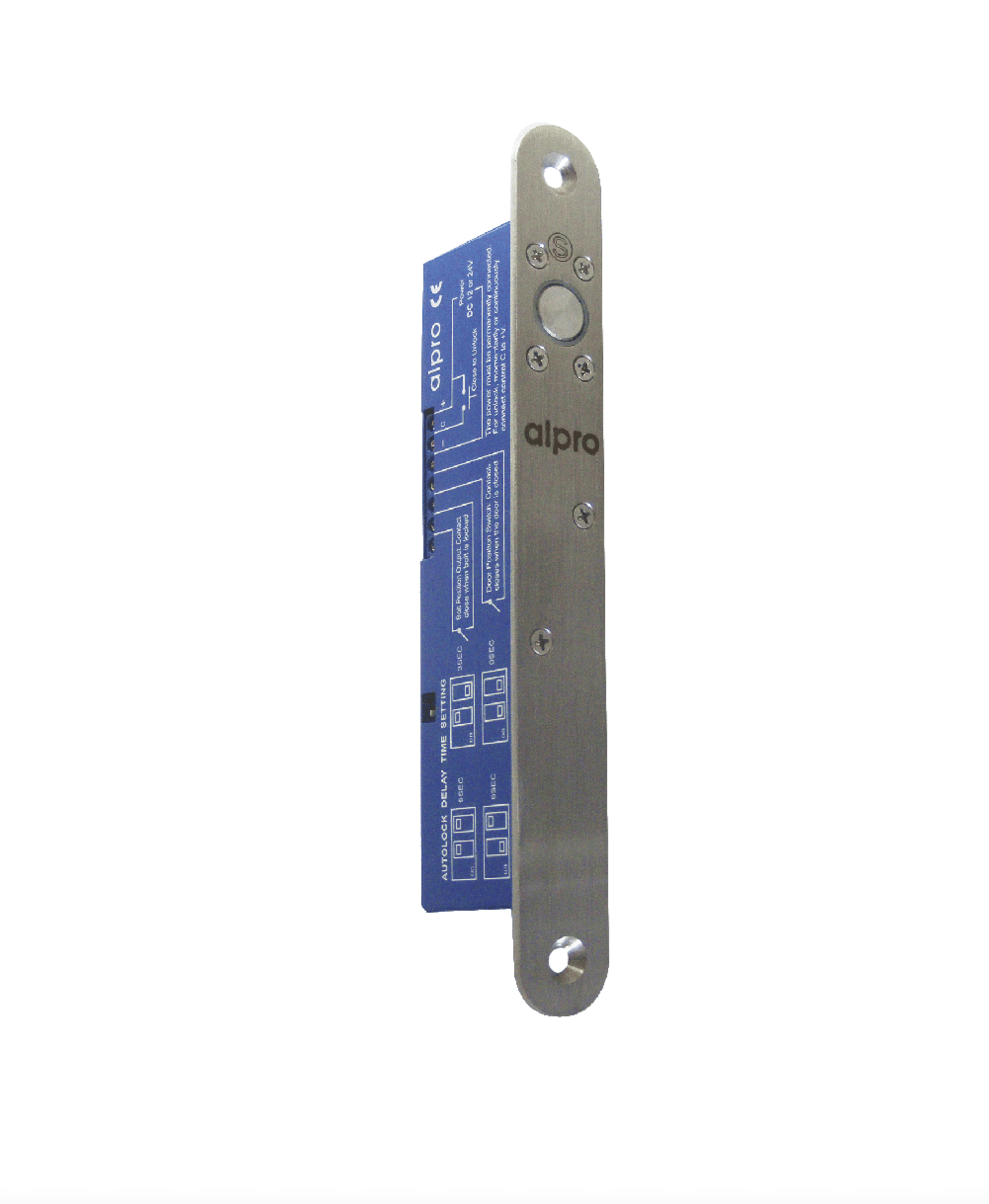

ALPRO EB250KO 12V/24V Dc Monitored Solenoid Bolt SS F/L Key Override

£469.50 exc VAT

SKU: EB250KO Category: SOLENOID BOLTS Brand: ALPRO

Specifications

The Alpro EB250 electric solenoid bolt & EB250KO key override solenoid bolts allow for both remote access and exit control of most timber and metal doors. It is also suitable for sliding or swing, single or double action operations. It can be fitted in the frame or in the door. With concealed mortise mounting and slimline styling the bolts suit most narrow stile aluminium doors and narrow profile joinery.

Features

Dual monitoring (triple monitoring on key override version)
Auto re-lock function
Bolt throw 14mm
Holding force 1000kg
3 year guarantee

High Physical Security
Holding force 1,000kg – Bolt throw 14mm

Robust Construction
All stainless steel bolt of 14mm diameter, linkages and springs. 3mm stainless steel faceplate and strike plates with fully enclosed mechanism.

Versatile Installation
Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.

Slimline Dimensions
EB250 210mm(L) x 25mm(W) x 43mm(H)
Back box 160mm(L) x 22mm(W) x 40mm(H)
EB250KO 230mm(L) x 25mm(W) x 43mm(H)
Back box 180mm(L) x 22mm(W) x 40mm(H)

Multiple Voltage Input
Any voltage from 12V DC/24V DC. Complete with built in transient and reverse polarity protection and continuously rated solenoid.

Low Current Consumption

Volts Current	Activate Current	Hold
12V DC	740mA	120mA
24V DC	120mA	70mA

Auto Relock Function
Can be set to 0, 3, 6 or 9 seconds (DIP switch)

Monitoring
EB250 – Dual monitoring. Door position switch/bolt position switch
EB250KO – Triple monitoring
Door position switch/bolt position switch/key position switch

Maintained Key Override (EB250KO only)
Using standard Europrofile cylinder case pierced both sides for operation either side
