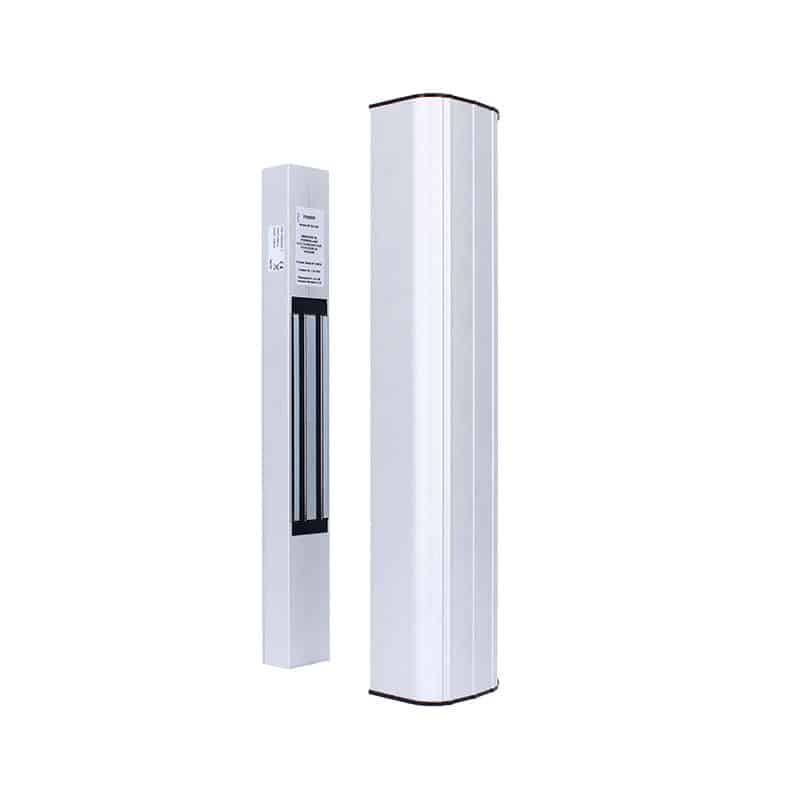

CDVI P300Rp 400Mm Architectural Handle With 1 X 300Kg Monitored Magnet
The P300Rp By Cdvi Is A 400Mm Handle Incorporating 1 X 300Kg Monitored Magnet And Can Be Fitted To New Or Existing Doors
£157.00 exc VAT
- Number of Relays: 1 x NO/NC
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 300kg
- Mounting: Surface
- Min Temperature (°C) -40°C Max Temperature (°C) +70°C Min
- Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 290mA @ 12Vdc / 145mA @ 24Vdc
Features
- Surface mount 300kg architectural handle
- Low power consumption
- Fire rated up to 30 minutes
- Retrofit or new build
- Aesthetic profile
- Suitable for wood, metal & glass doors
Dimensions
- Product Height (mm) 400 mm
- Product Width (mm) 105 mm
- Product Depth (mm) 63 mm
- Product Weight (kg) 2,6 kg
DATASHEET
