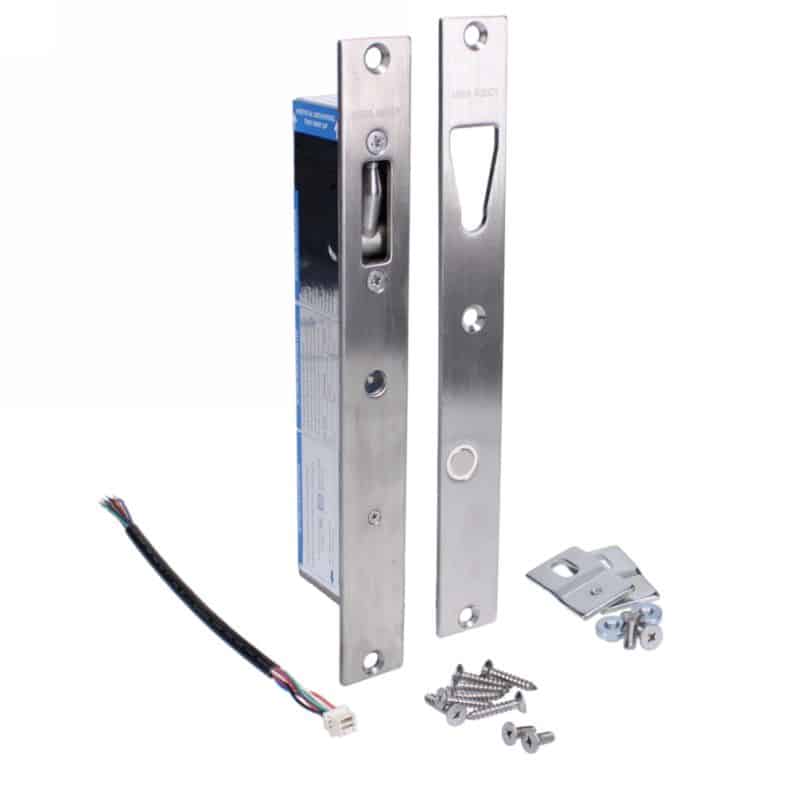

ASSA Abloy Es8100 12-24Vdc Monitored V-Lock Pto/Ptl
The Assa Abloy Es8100, Also Known As The V-Lock, Moves Into A V Shaped Strike Plate, Pulling The Door Into Alignment When Locked
£725.00 exc VAT
- IP53 Rated Electronically Monitored Reversible Handing UK Conformity Assessed (UKCA)
- 1000kg holding force
- Door position and lock status monitoring
- Easy one step field selection between fail safe and fail secure
- Vertical or horizontal mounting
- Tested to 500,000 cycles (120N unlocking. 50N locking)
- Locks under a pre-load of 20Kg (12W) and 35Kg (24W)
- Unlocks under a pre-load of up to 100Kg (3 wire mode) 15Kg (2 wire mode)
Features
- Completely redesigned internally, this new ES8100 V-Lock retains the original footprint of the Trimec ES8000 body and faceplate and is a direct retrofit for it
- The ES8100 strike plate utilises the same fixing locations but is 3mm wider to allow a larger misalignment distance of up to 12mm total (+/-6mm)
