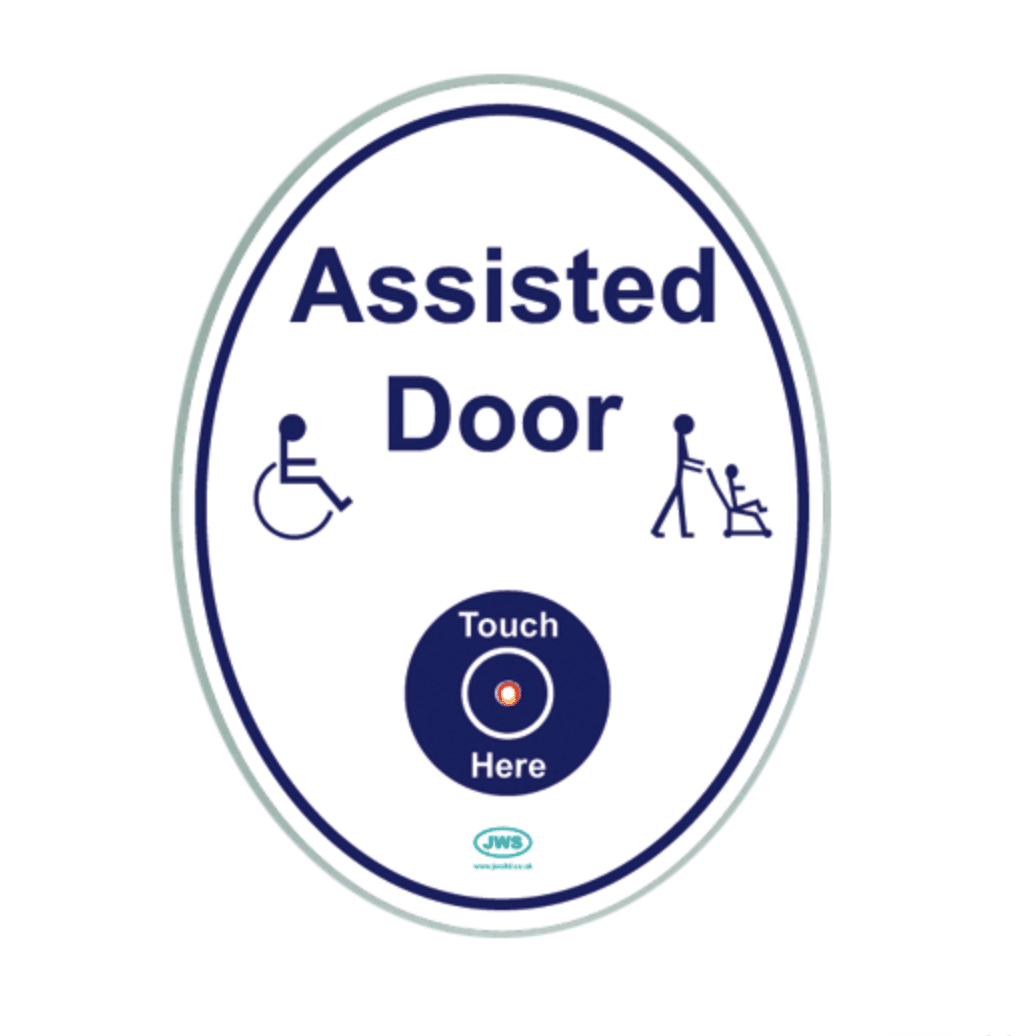

AUTOMATIC ‘Assisted Door’ Oval Touch Sensor

• JWS Hardwired (12-24v DC) Oval Touch Sensor for post mounting. Ideal for manually impulsing (triggering) door openers, activating access control, door entry & other switching applications. Signage: 'Assisted Door' with wheelchair and pram logos
• Unlike push pads no physical pressure is required making them ideal for users with physical disabilities. The LED & signage aids users with visual impairments (superior LRV rating than a push pad), audible indication provided by on-board sounder
• Operating Voltage: 12 to 24v DC
• Current Consumption : 10mA (qui) 40mA (active)
• Relay Connections*: NC,NO, C and LED + / -
• Dimensions: (mm): 160mm(w) x 37mm(d) x 210mm(h).
• Activation warning: Red 'ultrabrite' LED and sounder
• Housing Material: ABS
• Signage Plate: 5mm Touch acrylic
• Signage Makeup: Back printed long life vinyl
• Signage Inks: Long life Roland Eco-Sol UV resistant
• IP Rating: IP54

*The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated

Mounting Post purchased separately
