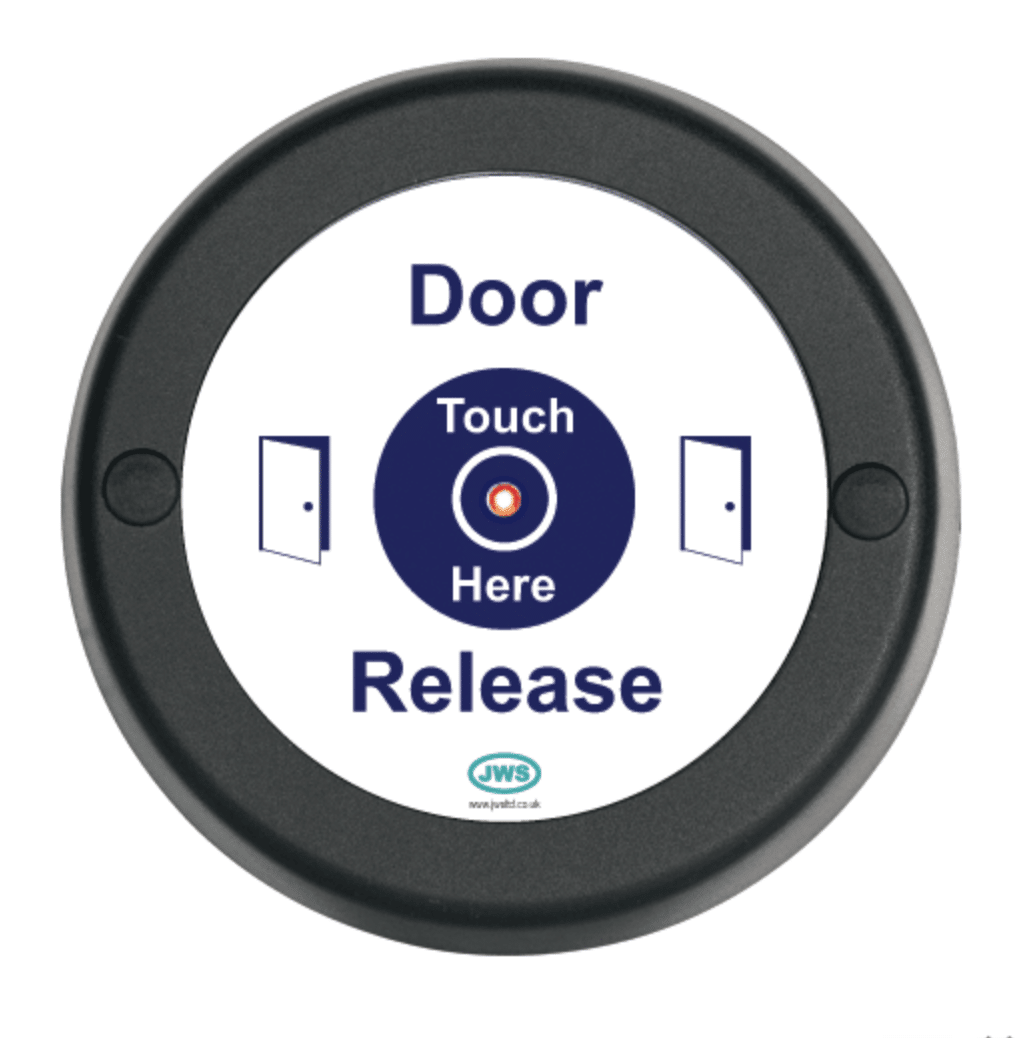

AUTOMATIC ‘Door Release’ Round Touch Sensor

• JWS Hardwired (12-24v DC) Touch Sensor in RVR / round housing. Ideal for manually impulsing (triggering) door openers, activating access control, door entry and other switching applications. Signage: 'Door Release' with door logo
• Suitable for internal and external installation (gasket & metal backplate included) and those subject to abuse. Its large round design makes it a perfect substitute for the push pad, providing more features and being aesthetically pleasing in comparison
• Unlike push pads no physical pressure is required making them ideal for users with physical disabilities. The LED & signage aids users with visual impairments (superior LRV rating than a push pad), audible indication provided by on-board sounder
• The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated
• Operating Voltage: 12 to 24v DC
• Current Consumption : 10mA (qui) 40mA (active)
• Relay Connections*: NC,NO, C and LED + / -
• Dimensions: (mm): 166 (dia) x 35 (d)
• Activation warning: Red 'ultrabrite' LED and sounder
• Housing Material: Nylon (glass filled)
• Housing Backplate: 2mm steel (anodised)
• Backplate Gasket: 2mm foam
• Signage Plate: Touch acrylic
• Signage Makeup: Back printed long life vinyl
• Signage Inks: Long life Roland Eco-Sol UV resistant
• IP Rating: IP54

  *The on-board relay has Common, Normally Open and Closed connections available as well as the LED which can be wired to be either constantly ON, OFF when activated or ON when activated

DATASHEET

RVRREL
