AUTOMATIC Toilet Door Locking Kit – Round – Touch

• Automatic Toilet Locking System with DWSR102U
• Fire Rated Spring Return Automatic Door Opener, Two Safety Sensors, and Finger-guard
• Disabled Persons Toilet Locking System for Automatic Door Operators and designed for DDA compliance. It can be easily integrated into a toilet with supplied Automatic Door Opener
• Operated by two JWS Touch Sensors it controls Entry by Opening and Locking the door at the appropriate times interfacing with both the Automatic Door operator and a locking device (maglock)

Features

• Touch the entry sensor. The door opener will activate to provide access
• Touch the Red Sensor to lock the door. To confirm the door is locked, the indicators on both Sensors will flash showing the toilet is engaged and inhibiting the entry sensor
• Touch the Green Sensor and the indicator stops flashing. The door will be unlocked and the door opener activated. The entry sensor stops flashing and becomes operable once again to provide access

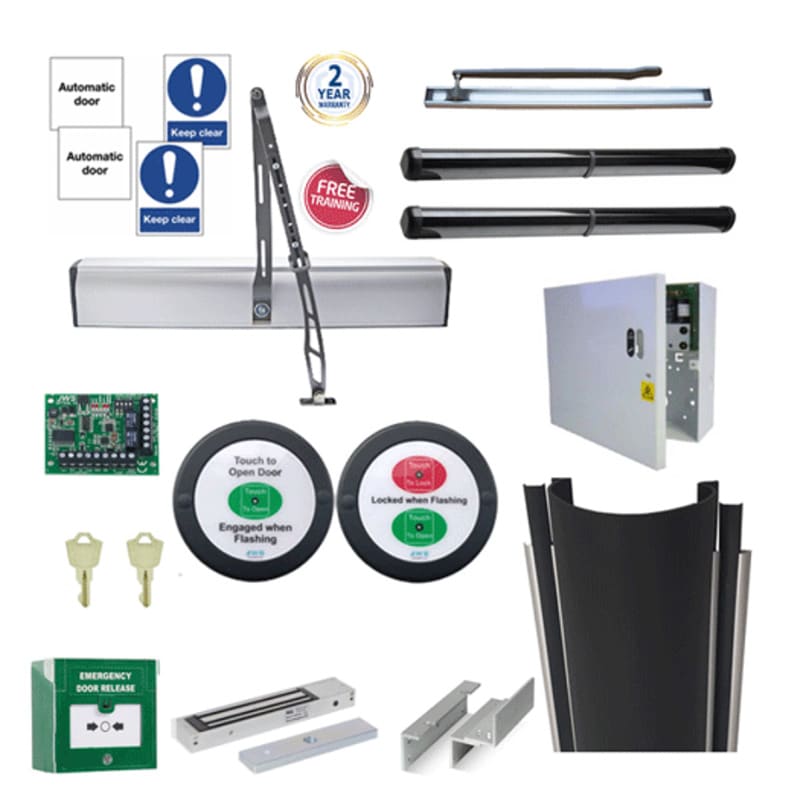

Contents

• DWSR102U Digiway Fire Rated Spring Return Automatic Door Opener
• Inward & Outward Opening Arms
• Two X SS5 Monitored Safety Sensor 692 mm
• LAS Fingergurard
• Automatic Door and Keep Clear Signage
• DPTS PCB (already fitted in power supply) 12v 1A PSU (powers DPTS and lock)
• Size: 200 x 225 x 75mm
• Open (External) Touch Sensors with emergency override key switch (2 keys included)
• Size: 85 x 145 x 34mm
• Lock (Internal) Touch Sensor
• Size: 85 x 145 x 34mm
• Door Contact
• Resettable Breakglass with cover and one reset key
• User labels
• Slimline Maglock
• Z and L Bracket Kit

DATASHEET

DPTSKIT+COMPLETE-RVR-T
