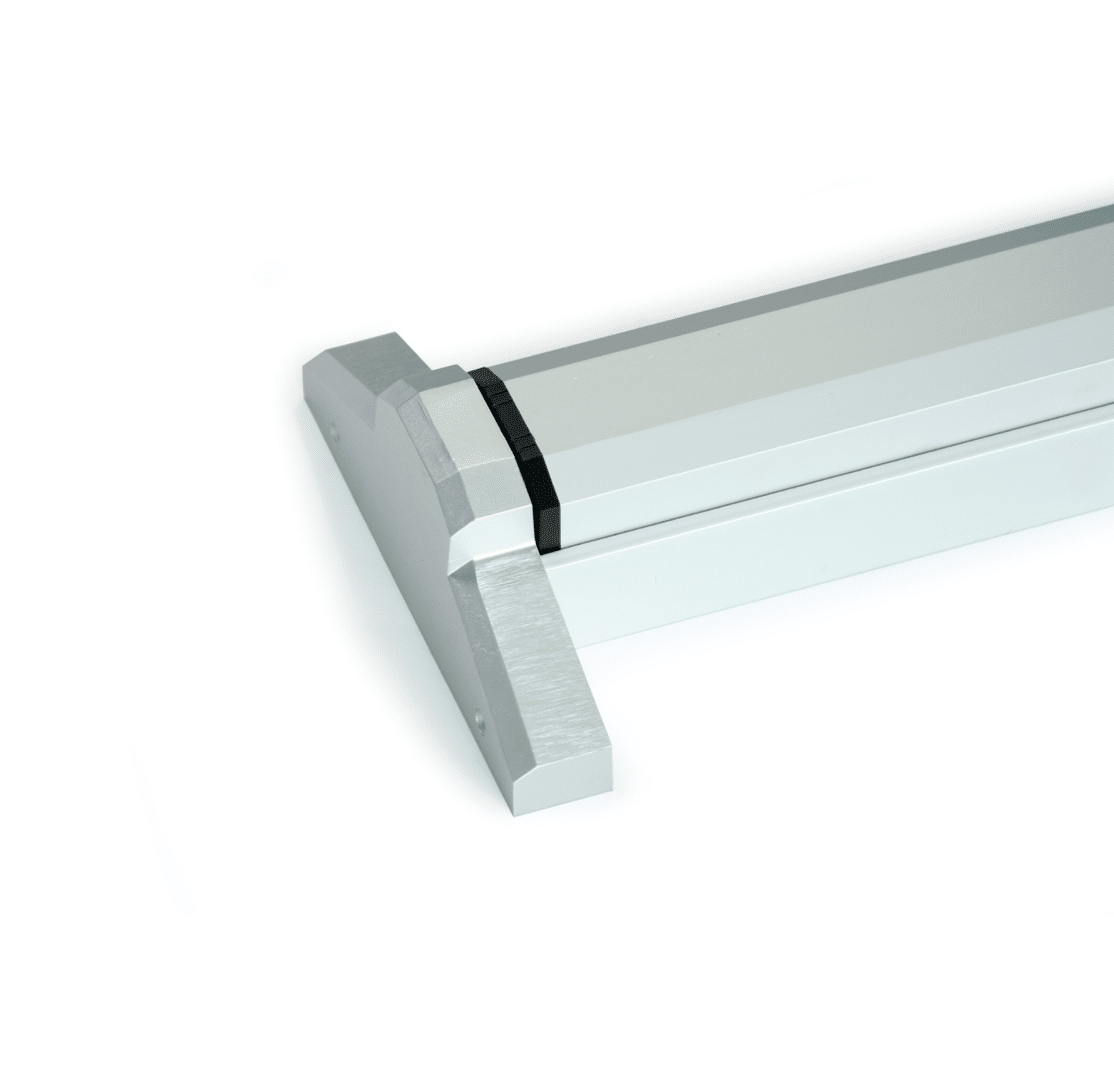

AXIM Pr-7100-Al Concealed Vertical Rod Flat Touch Bar 48″

• Heavy duty lever springs and internal mechanism for durable, smooth operation
• Plated steel and stainless steel internal components
• 8.5mm diameter, steel locking rods
• 16mm bolt throw. Bolt length adjustable ensuring correct alignment
• Standard model suitable for door widths as narrow as 700mm and 2135mm high
• 300mm & 600mm coupling rods are available for taller doors
• Available with standard mortice rim cylinder and mounting pad allowing external access
• Permanent bolt retention for easy access can be achieved with cylinder key from outside, or hexagon key in the touch bar
• Extruded aluminium touch bar, anodized finish with coloured alloy end caps to match

DATASHEET

PR-7100
