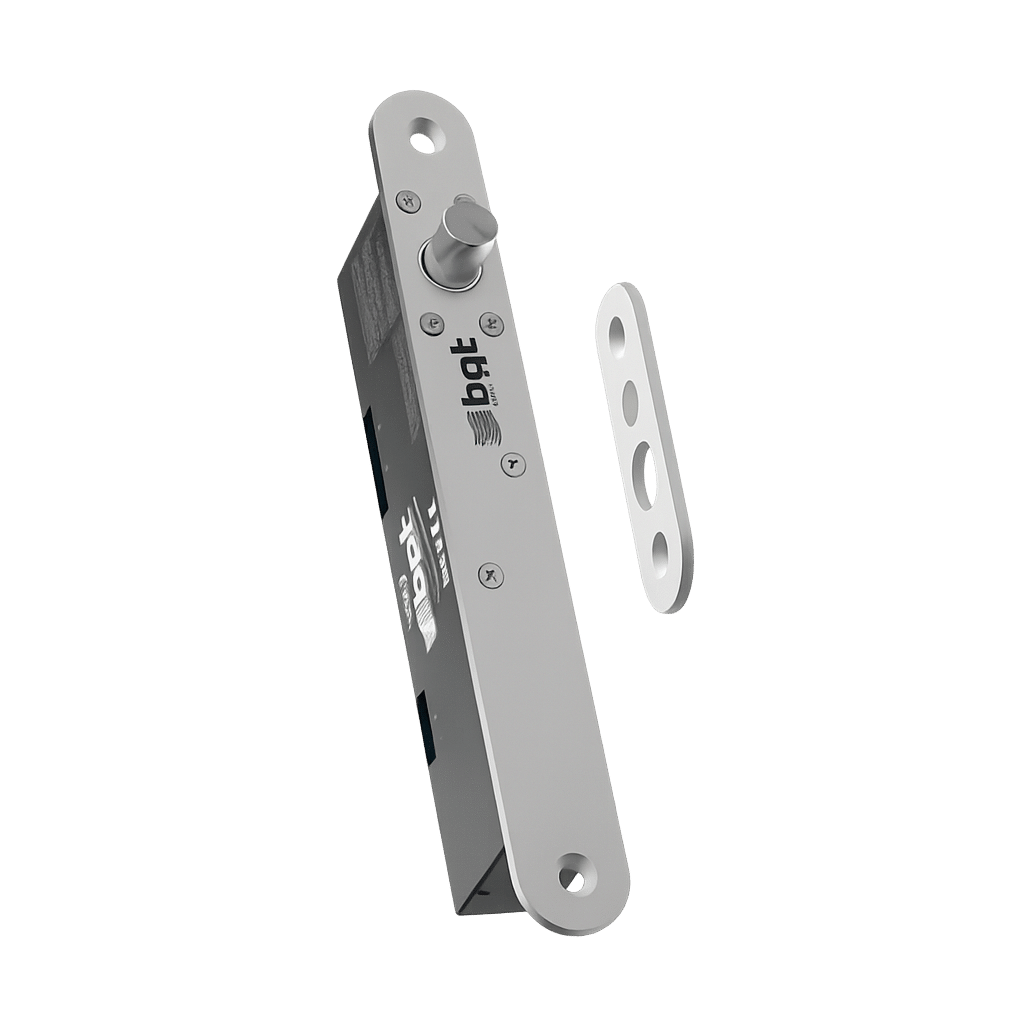

BQT YD25 Solenoid Bolt
The Narrow Design Of The Yd25 Makes It The Ideal Lock For Thinner Door Frames And Provides A Completely Concealed Solution When Morticed
£225.00 exc VAT
The YD25 is a low voltage electronic deadbolting door lock. Commercial or residential doors can be secured, and with streamlined dimensions, the YD25 is ideal for thinner door styles. Hidden in door frames or surfaces mounted to glass doors with the aid of accessories, this lock has set the industry standard for over 25 years.
Reliability, functionality, and quality are combined to result in this fully monitored solenoid drop bolt designed with narrow dimensions to fit into all doorframes. The YD25 can be connected to advanced access control systems where traffic and log reports are important, but because of the integrated access control features, it can also operate in a simple system.
- Door Gap 6mm maximum
- Static Strength 10,000 newtons (1,000Kg)
- Endurance Cycle tested to 1,000,000 operations
- Bolt Pin ø12.7mm, 16mm extension, ø15.5mm receiver
- Voltage at Lock 12-24VDC ±10%
- Current Usage Holding: 130mA@12V,80mA@24VMaximum: 1.5A@12V, 1.4A@24V
- Monitor Switch Ratings 24VDC, 0.5A
- Materials Lock / Strike Plate: Stainless Steel 304, Bolt Pin: Stainless Steel 304
- Compliance and Certification CE Compliant, RoHS 2 Compliant FCC Part 15 Compliant
