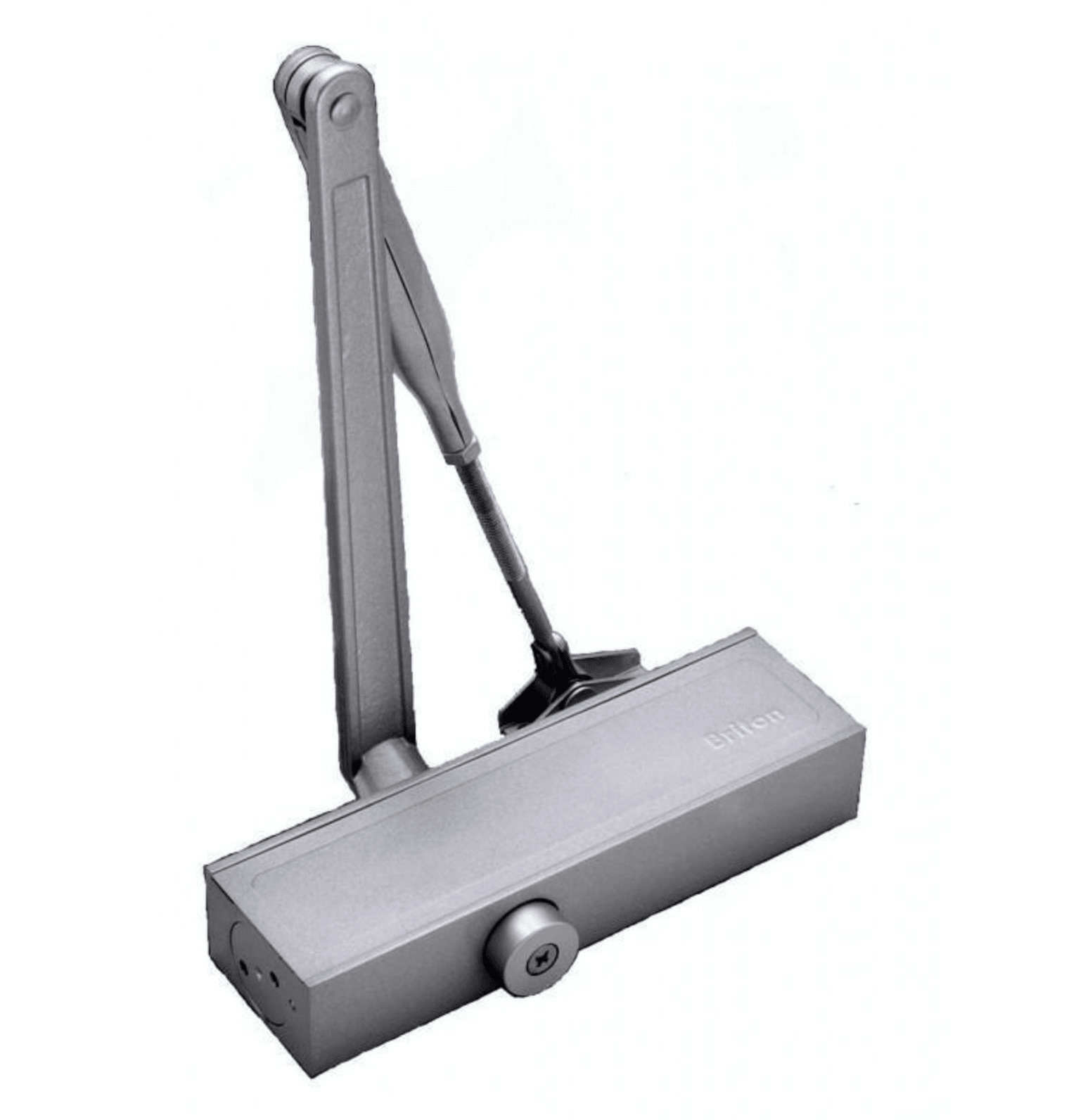

BRITON 1120B Door Closer EN 2-4 Medium Duty
The Briton 1120B Door Closer Has A Built In Adjustable Backcheck, Is Medium Duty And Can Be Used On Fire Doors. It Is En2-4 And Suits Doors Up To 1100Mm
£50.35 exc VAT
- Power adjustable size EN 2-4
- Adjustable backcheck
- Adjustable closing speed 180° to 15°
- Adjustable latch action 15° to 0°
- Trimplate cover
- Screw thread arm
- Suitable for exterior and interior doors
- Suitable for doors 750mm-1100mm
- Suitable for doors up to 80kg
- Maximum opening angle 180° in Fig. 1 and Fig. 61
- Maximum opening angle 130° EN 3 and EN 4 in parallel arm Fig. 66
- CE marked to EN 1154 (2812-CPR-AD0034)
- UKCA marked to EN 1154 (1121-CPR-UK-AD7581)
- Fire tested to EN 1634
- 120 minute fire rating – timber doors
- 240 minute fire rating – steel doors
- Certifire Approved CF388
- Full classification code: 4 | 8 | 2-4 | 1 | 1 | 3
- Capable of meeting the requirements of BS8300
- Body dimensions: 38.5mm x 236mm x 60mm
DATASHEET
