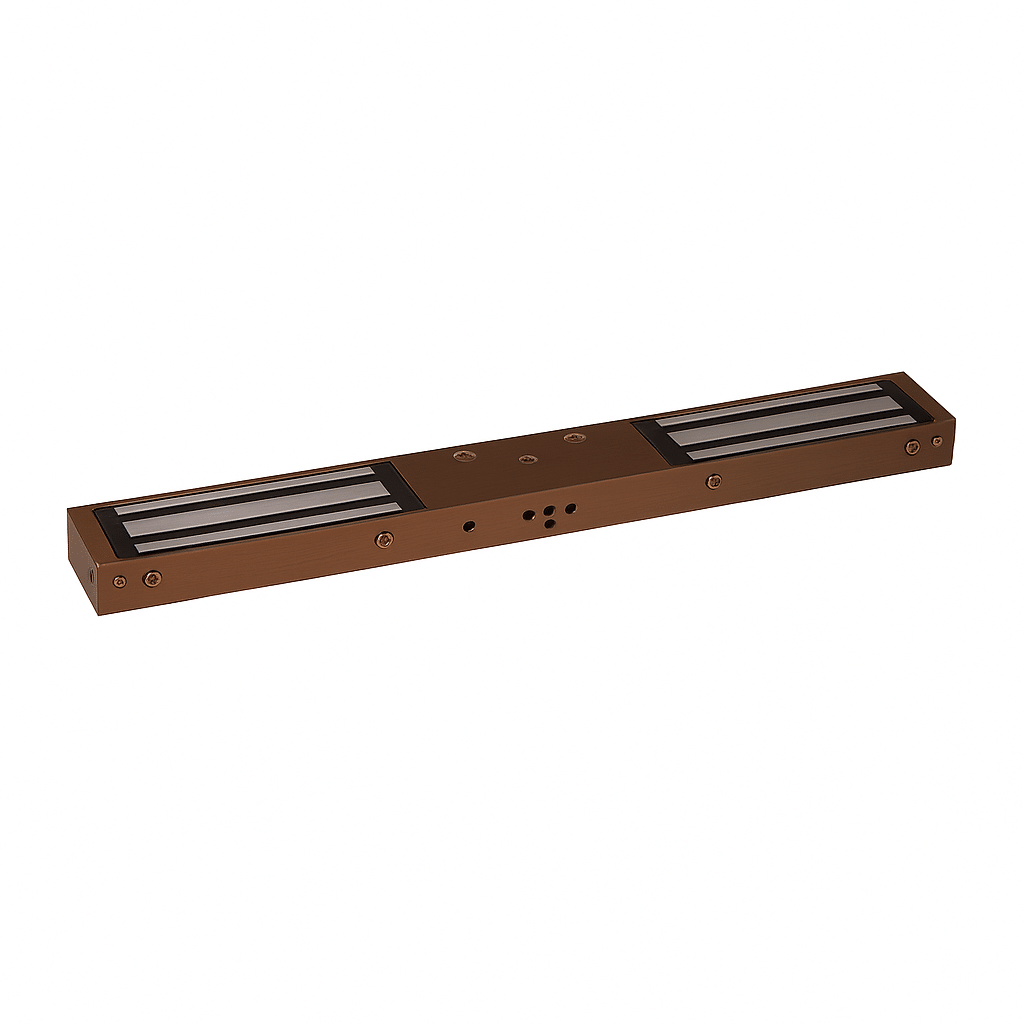

ML600-D-M Ral Fire-Rated Monitored Slimline Double Maglock (600Lb/272Kg)
Price range: £91.75 through £143.65 exc VAT
- Aluminium housing
- Dual voltage 12/24 VDC @ 480/240mA x 2
- 280kgs (600lb) holding force x 2
- Built in surge protection
- Surface mount
- Fail safe operation (power to lock)
- +/- 15% voltage tolerance
- -10° to +50° operating temperature
- Push off release pin on armature
Features
- FIRE-RATED (30, 60, 90 & 120 min timber door set)
- Slimline magnet
- Clean and compact design
- No residual magnetism
- Power LED indication on ML600-D (Red LED only)

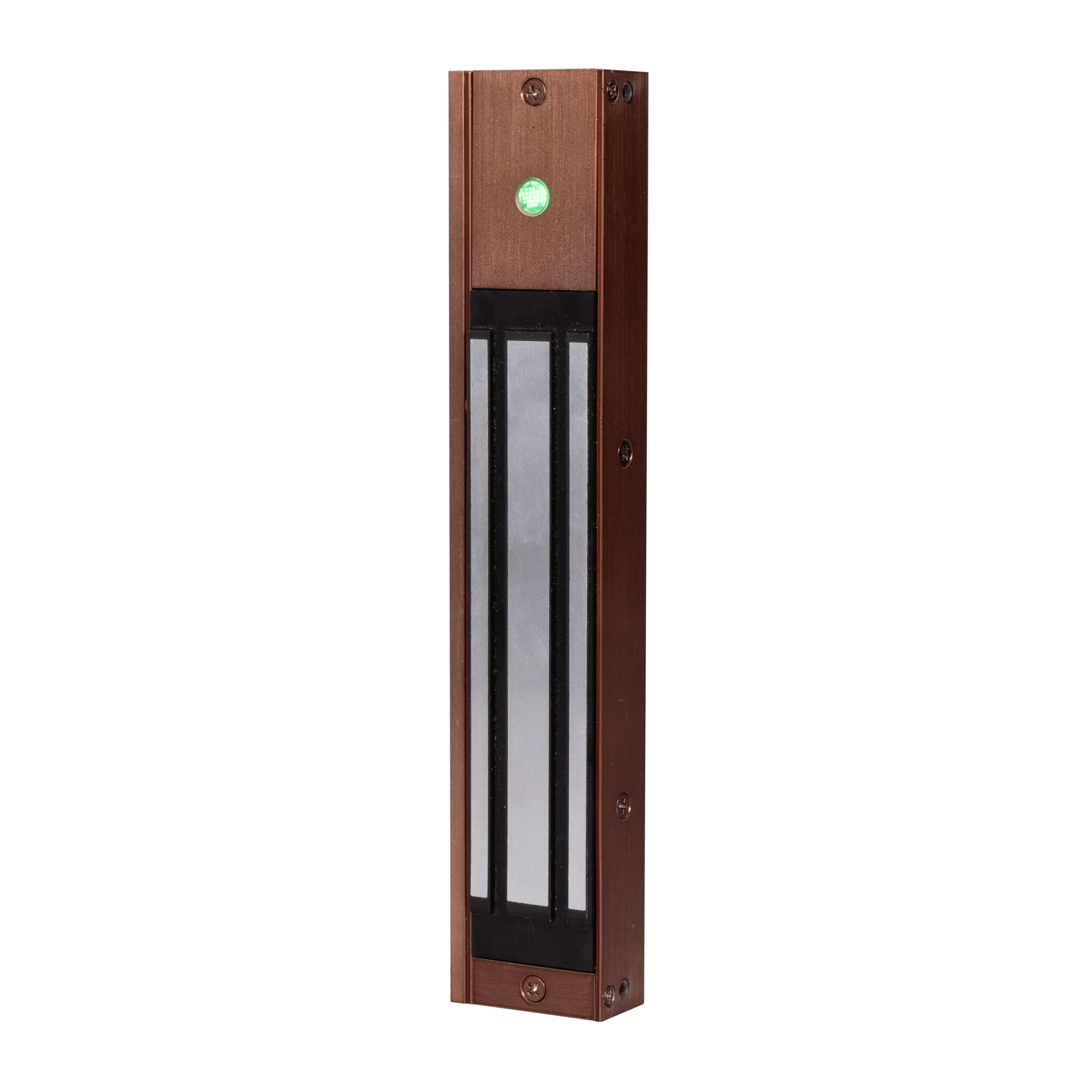

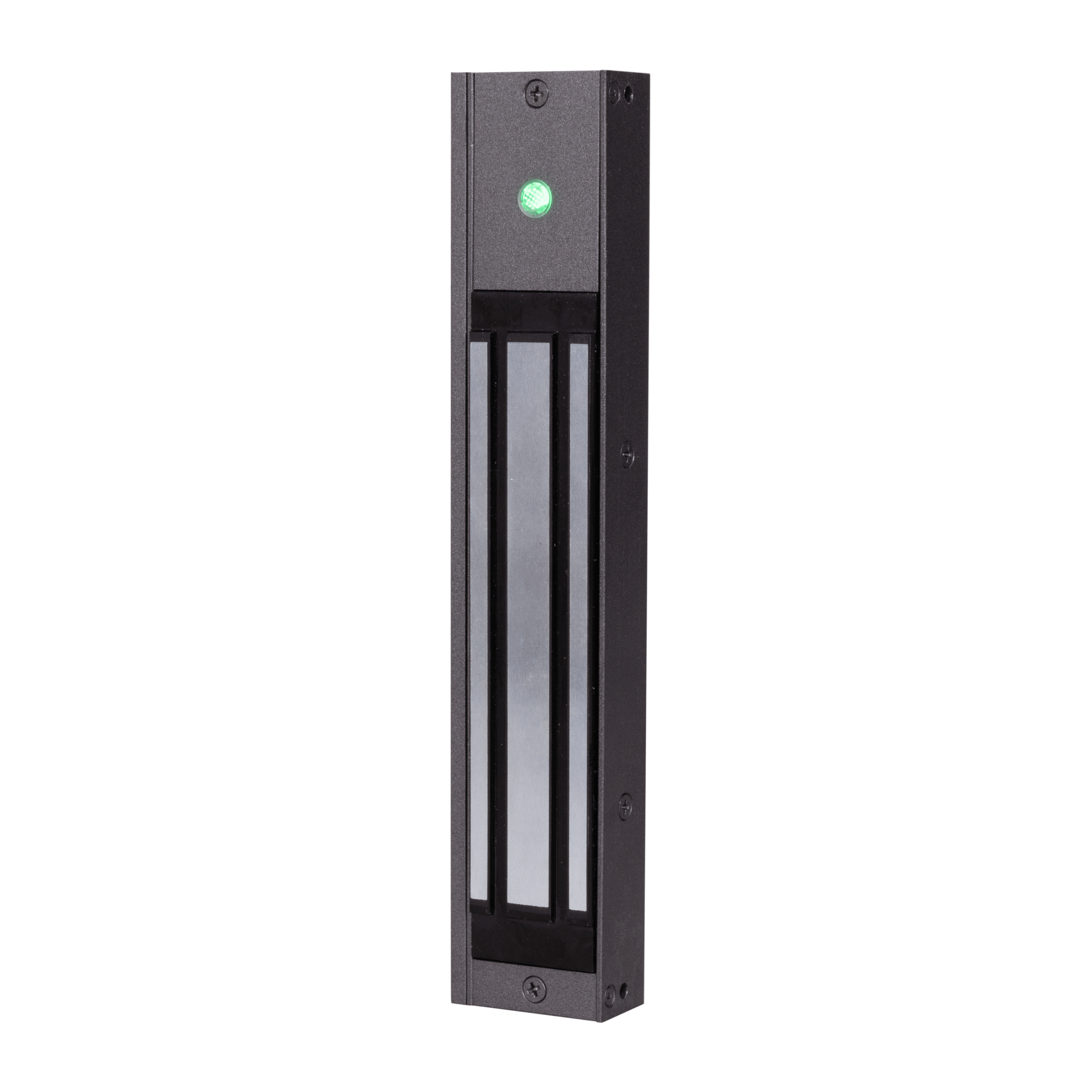

- Status LED indication on ML600-D-M (Red to Green)
- Suitable Brackets/Housings:
BK600-D-ZL (Double ZL bracket)
BK600-D-L (Double L Bracket)
BK600-D-FL/AB (Double Architectural FL)
AB600ZL-DC (Architectural ZL) x 2
AB600CL (Architectural L) x 2
AH600 (Required for Fire Doors) x 2
BK600U (Glass door bracket) x 2
GD600ZL (Glass Door ZL) x 2
Dimensions
- 500x42x25 (mm) Maglock
- 180x38x13 (mm) Armature x 2
- 3.94kg Boxed
- 2.26kg Unboxed
Contents
Double slimline magnet (600lb)
Armature plate x 2
600GB fixing kit x 2
Instructions
Armature fixing template
DATASHEET
Additional information
| Dimensions | 500 × 42 × 25 mm |
|---|---|
| RAL Colours | MATT BLACK, MATT BRONZE, DARK BRONZE, MID BRONZE, LIGHT BRONZE, SATIN COPPER, SATIN BRASS |
