CAME ATS-P5 230V Swing Kit For Double Gates 5M (1000Kg)

The CAME ATS-S5 ELECTRIC GATE KIT is a complete swing gate kit designed for single residential or apartment block gates, supporting a gate up to a maximum width of 5 meters or 1000kg in weight. This kit includes the brand new ATS Telescopic Motor, allowing installation on large pillars with a C dimension up to 200mm, and features a boltable post mounting bracket for quick and easy installation.

• Adjustable open and close limits without the need for a physical stop
• Quick and easy installation on existing hinged swing gates
• Supports gates up to 5 meters wide or 1000kg
• 230v electromechanical motor for reliable performance
• Mechanically locking motor for enhanced security
• Gate speed of 20 seconds for a 90-degree opening
• Designed for intensive use with a duty cycle of 20 cycles/hour
• IP 44 protection rating for durability

• Gate Type: Swing Gate
• Single Or Twin Kit: Single Gate Kit
• Max Weight Per Gate: 1000kg
• Max Length Per Gate: 5000mm
• Above Or Underground: Above Ground
• Max Opening Angle: 120 Degrees
• Motor: Electromechanical
• Locking Method: Mechanically Locking Motor
• Power Supply Voltage: 230v
• Motor Voltage: 230v
• Gate Speed: 20 Seconds 90 Degrees
• Duty Cycle: 20 Cycles/Hour
• Protection Rating: IP 44

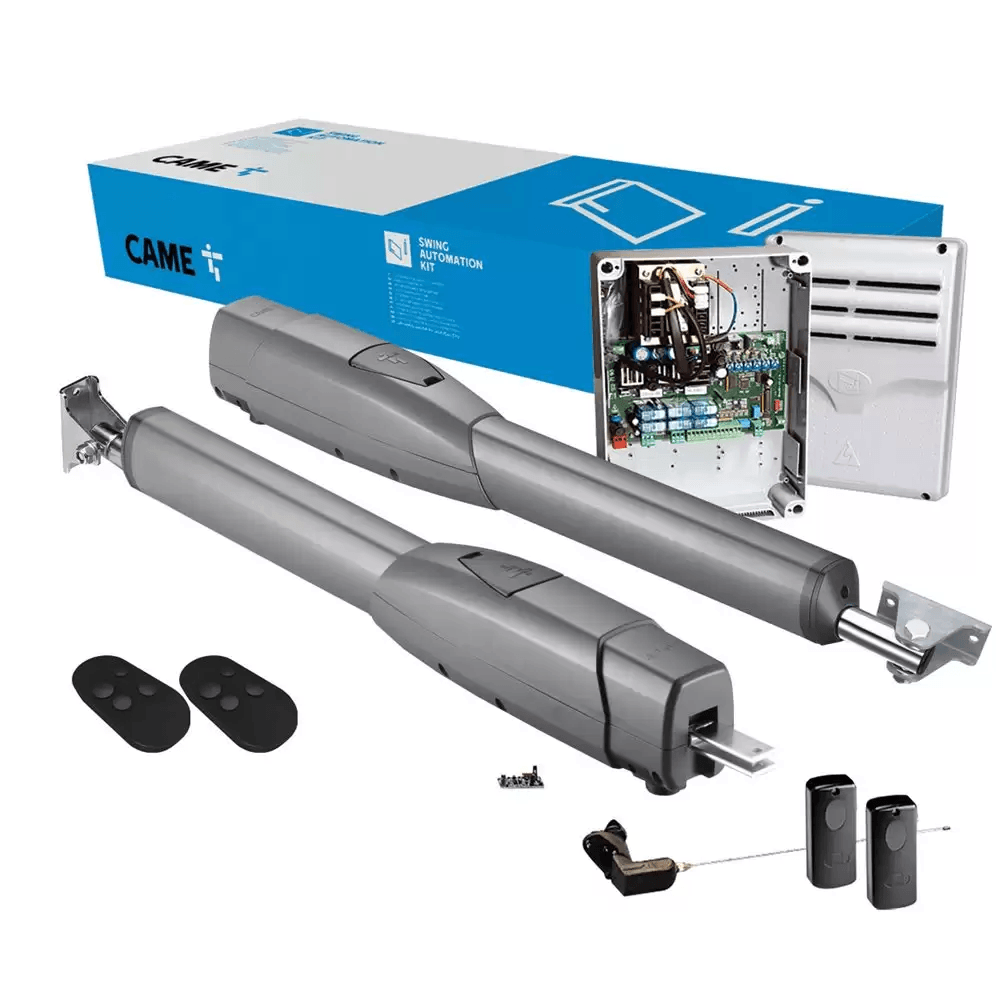

Contents

• 2 CAME ATS50AGS 230v Motors
• 1 CAME AF43S Frequency Card 433MHz
• 1 CAME DIR-10 Pair of Safety Photocells
• 1 230v Control Panel
• 2 4-button Radio Remotes - 806TS-0270
• 1 CAME TOP-A433N Antenna

DATASHEET

CAME ATS-P5
