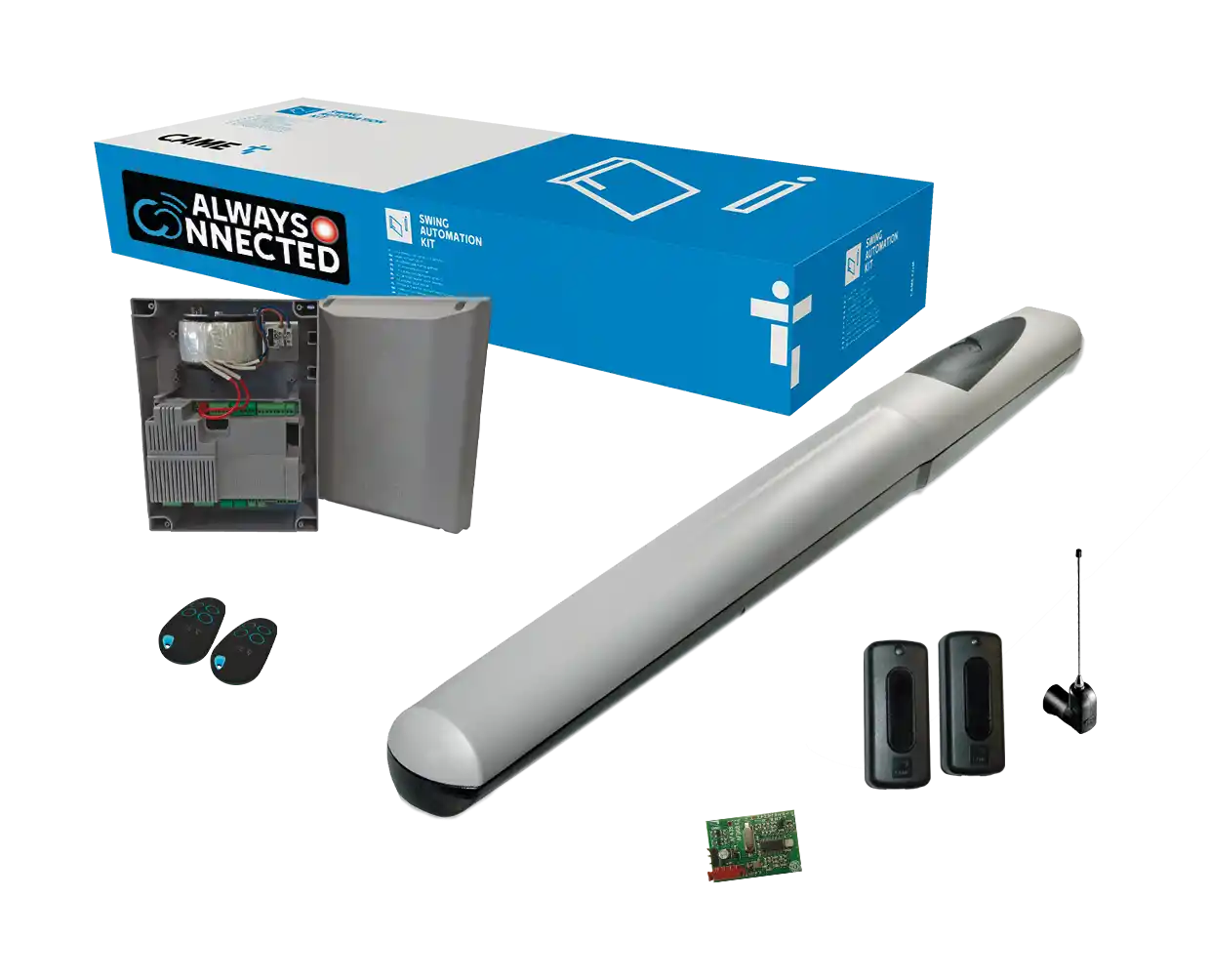

CAME AXO-S324 24V Electro Mechanical Automation Single Swing Gate 3M

The CAME AXO-P324 KIT is a complete swing gate kit designed for single residential or apartment block gates, supporting a gate up to a maximum width of 3 meters or 800kg in weight. This kit includes a RAL7024 Grey Motor and is designed for quick and easy installation on existing hinged swing gates.

• Battery backup available for operation during mains power failure
• Adjustable slow down on open and close positions
• Adjustable open and close limits without the need for a physical stop
• LCD display on the control panel for simplified programming
• Quick and easy installation on existing hinged swing gates
• Supports gates up to 3 meters wide or 800kg
• 24v electromechanical motor for reliable performance
• Mechanically locking motor for enhanced security
• Adjustable gate speed for customized operation
• Designed for intensive use with a duty cycle of 20 cycles/hour
• Built-in obstacle detection for enhanced safety
• CAME Cloud Technology for remote monitoring and control
• IP 44 protection rating for durability

• Gate Type: Swing Gate
• Single Or Twin Kit: Single Gate Kit
• Max Weight Per Gate: 800kg
• Max Length Per Gate: 3000mm
• Above Or Underground: Above Ground
• Max Opening Angle: 120 Degrees
• Motor: Electromechanical
• Locking Method: Mechanically Locking Motor
• Power Supply Voltage: 230v
• Motor Voltage: 24v
• Gate Speed: Adjustable
• Duty Cycle: Intensive
• Obstacle Detection: Built-In Obstacle Detection
• Protection Rating: IP 44

Contents

• 1 CAME AX3024 24v Motor
• 1 CAME AF43S Frequency Card 433MHz
• 1 CAME DIR-10 Pair of Safety Photocells
• 1 CAME ZLJ24Z Control Panel
• 2 CAME TOPD4RKS Radio Remotes - 806TS-0122
• 1 CAME TOP-A433N Antenna
