CAME Frogplus-S7 230V Heavy Duty Electro Mechanical Underground Operator Single Kit 7M (1000Kg)

The CAME FrogPlus-S7 Kit offers a comprehensive solution for industrial or apartment block swing gates, accommodating gates up to 7m in width or 1000kg per leaf. This kit ensures top-notch aesthetics by concealing the motor underground, thus removing trapping points above ground level.

• Ultimate Choice in Aesthetic Appearance: Concealed motor design provides excellent aesthetics and reduces hazards
• Slow Down on Open and Close: Adjustable speed settings for a smooth and personalised gate operation
• Manual Release from Outside: Allows manual operation in case of power failure, crucial for gates as the sole access point
• Integrated Open & Close Limits: Adjustable limits without the need for ground stops, suitable for gates under 1.8m width
• LCD Display: Simplified programming with the control panel's LCD display
• Built-in Obstacle Detection: Safety feature that stops and reverses the gate upon detecting obstacles
• CAME Cloud Technology: Monitor and control your gates remotely via the cloud and the XIP mobile app

• Gate Type: Swing Gate
• Single Or Twin Kit: Single Gate Kit
• Max Weight Per Gate: 1000Kg
• Max Length Per Gate: 7000mm
• Above Or Underground: Underground
• Max Opening Angle: 110°
• Motor: Electromechanical
• Locking Method: Mechanically Locking Motor
• Power Supply Voltage: 230v
• Motor Voltage: 230v

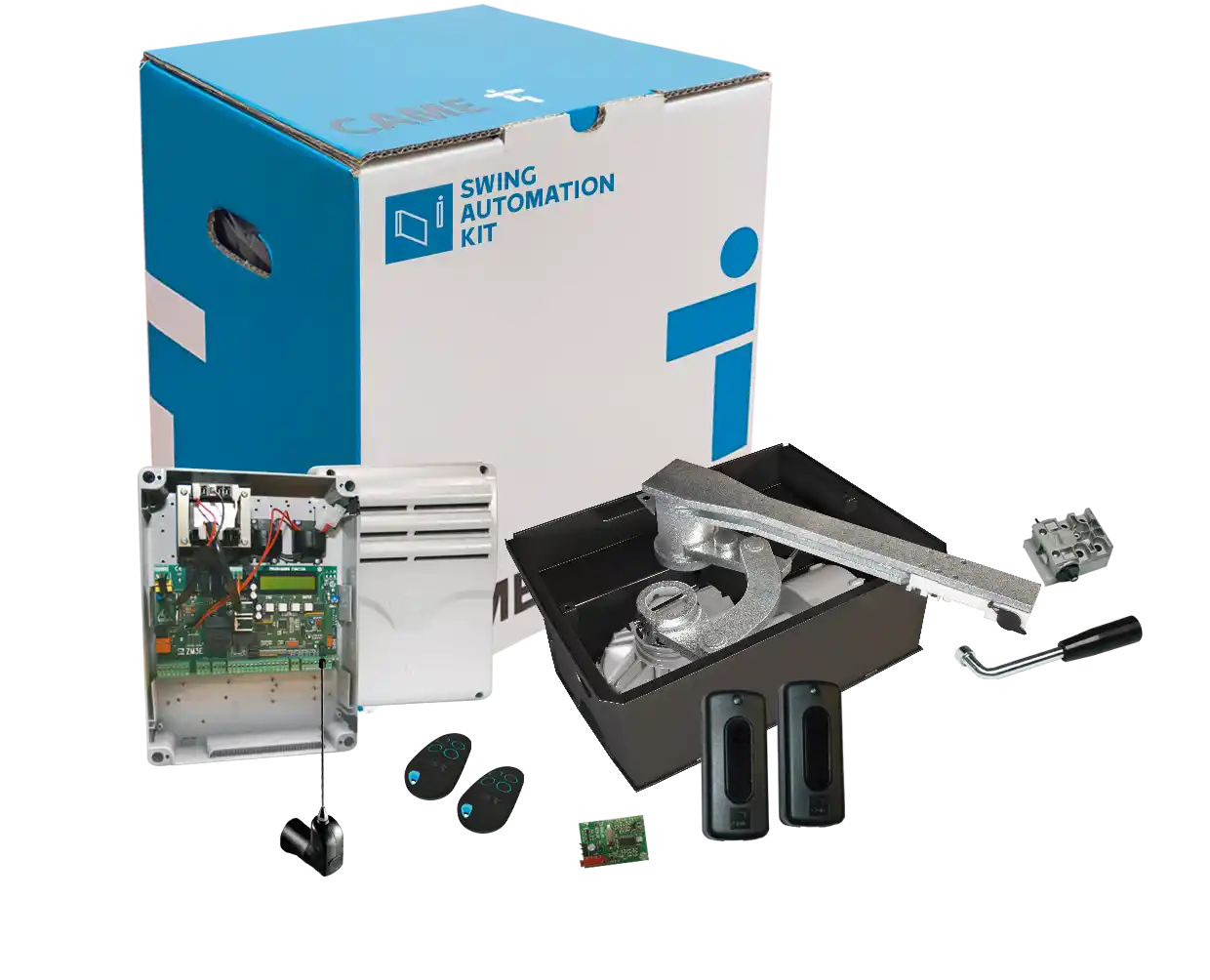

Contents

• 1x Frog-PM6 underground operator
• 1x Frog-PC foundation case
• 1x A4364 release mechanism
• 1x DIR-10 pair of photocells
• 1x ZM3EP control panel
• 2x TOP-432NA remote transmitters
• 1x TOP-A433N antenna
• 1x AF43S radio card
