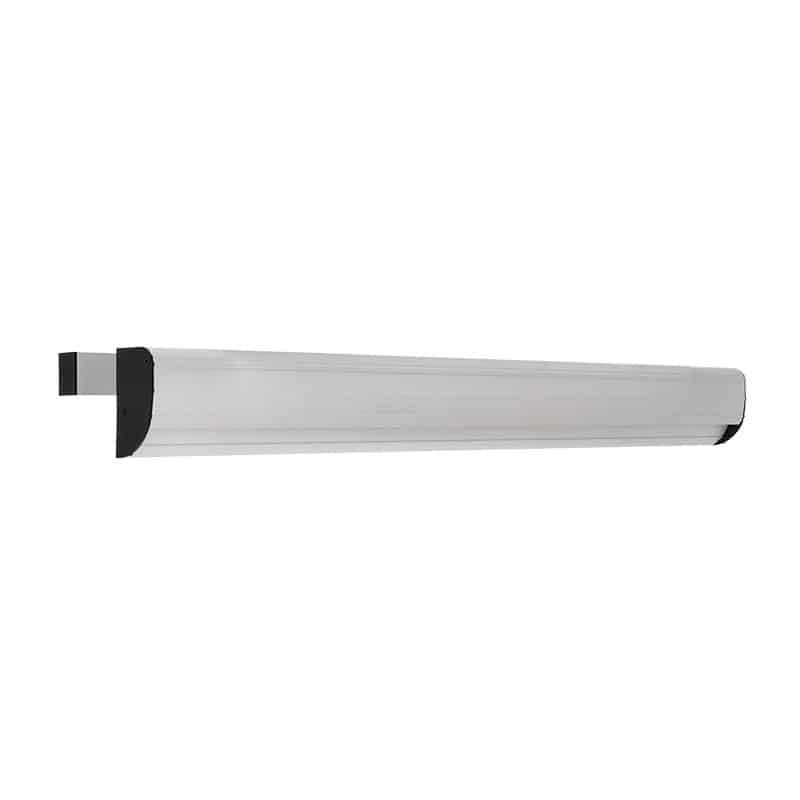

CDVI BO600Rh 1 Metre Architectural Housing With 2 X 300Kg Monitored Magnets
The Bo600Rh By Cdvi Is A Horizontal Housing Incorporating Two 300Kg Monitored Maglocks And Is Designed To Fit Across The Top Of The Door
£262.00 exc VAT
- Number of Relays: 1 x NO/NC (per maglock)
- Fail Safe / Fail Secure: Fail safe
- Mounting: Surface, horizontal
- Min Temperature (°C) -40°C Max Temperature (°C) +70°C Min. Voltage (V) 12Vdc Max Voltage (V) 48Vdc
- Voltage AC/DC: DC
- Max Power Consumption (mA) 290mA @12Vdc / 145mA @24Vdc (per maglock)
Features
- Architectural horiziontal housing with 2x300kg monitored magnets
- Low power consumption
- Fit to new doors or retrofit to existing doors
- Ideal for high traffic sites that need high holding force and an aesthetic finish
- Can be cut down to bespoke size and sprayed in custom RAL colour
- Suitable for wooden, metal, or glass doors
Dimensions
- Product Height (mm) 925
- Product Width (mm) 105
- Product Depth (mm) 62
- Product Weight (kg) 5.3
DATASHEET
