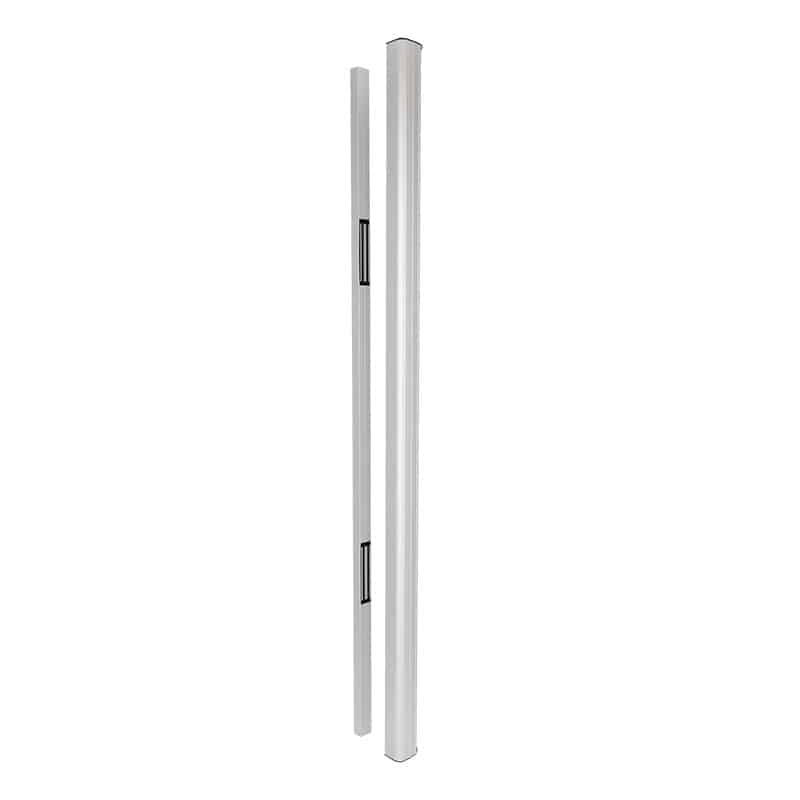

CDVI Bo600Rp 2.5 Metre Architectural Handle With 2 X 300Kg Monitored Magnets

• Number of Relays: 1 x NO/NC (per maglock)
• Fail Safe / Fail Secure: Fail safe
• Mounting: Surface, vertical or horizontal
• Min Temperature (°C) -20°C Max Temperature (°C) +60°C Min
• Voltage (V) 12Vdc Max Voltage (V) 24Vdc
• Voltage AC/DC: DC Max Power Consumption (mA) 290mA @12Vdc / 145mA @24Vdc (per maglock)

Features

• Architectural pull handle with 2x300kg monitored magnets
• Low power consumption
• Fit to new doors or retrofit to existing doors
• Ideal for high traffic sites that need high holding force and an aesthetic finish
• Can be cut down to bespoke size and sprayed in custom RAL colour
• Suitable for wooden, metal, or glass doors
• Optional mimic handle section for reverse side of door - for a neater finish

Dimensions

• Product Height (mm) 2500
• Product Width (mm) 105
• Product Depth (mm) 63
• Product Weight (kg) 11.6kg

DATASHEET

BO600RP
