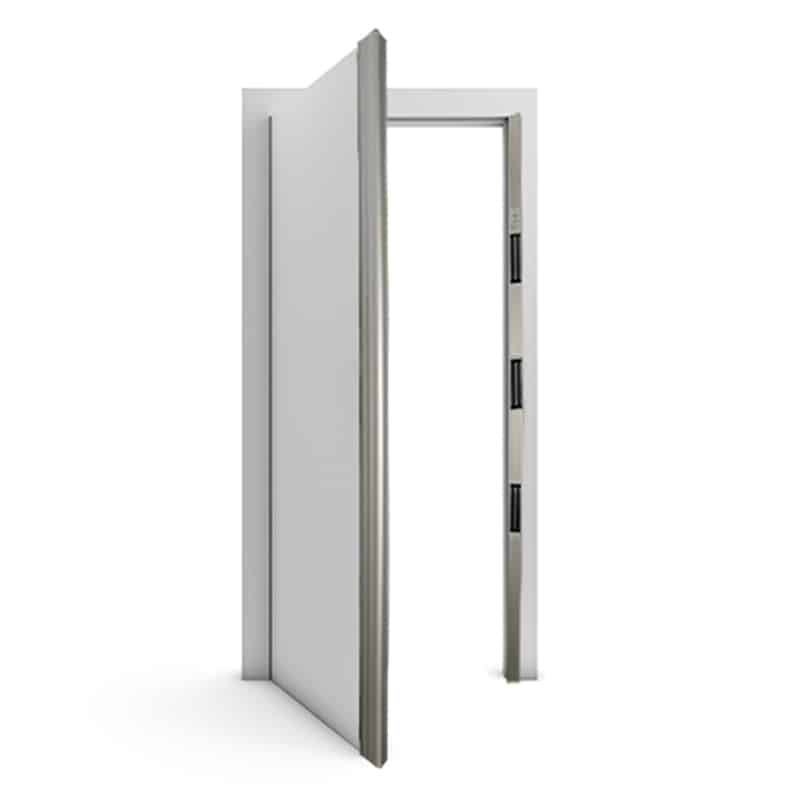

CDVI BO900Rp 2.5 Metre Architectural Handle With 3 X 300Kg Monitored Magnets

• Number of Relays: 1 x NO/NC (per maglock)
• Fail Safe / Fail Secure: Fail safe
• Mounting: Surface, vertical or horizontal
• Min Temperature (°C)-20°C Max Temperature (°C) +60C
• Min. Voltage (V) 12Vdc Max Voltage (V) 48Vdc
• Voltage AC/DC: DC
• Max Power Consumption (mA) 290mA @12Vdc / 145mA @ 24Vdc

Features

• Architectural pull handle with 3 x 300kg monitored magnets
• Low power consumption
• Fit to new doors or retrofit to existing doors
• Ideal for high traffic sites that need high holding force and an aesthetic finish
• Can be cut down to bespoke size and sprayed in custom RAL colour
• Suitable for wooden, metal, or glass doors
• Optional mimic handle section for reverse side of door - for a neater finish
• To keep cables hidden, try the REOMA spacer and cable tray set

Dimensions

• Product Height (mm) 2500
• Product Width (mm) 105
• Product Depth (mm) 63
• Product Weight (kg) 13kg
