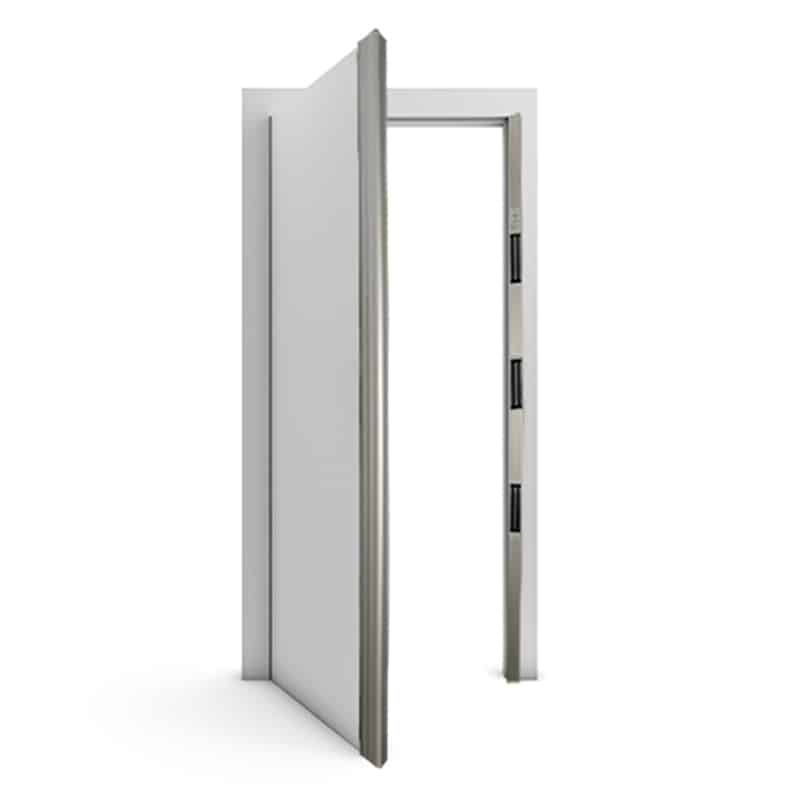

CDVI BO900W 2.5 Metre Recessed Architectural Handle With 3 X 300Kg Magnets

• Fail Safe / Fail Secure: Fail safe
• Mounting: Surface, vertical or horizontal
• Min Temperature (°C) -40° Max Temperature (°C) +70° Min
• Voltage (V) 12Vdc Max Voltage (V) 24Vdc
• Voltage AC/DC: DC
• Max Power Consumption (mA) 285mA @ 12Vdc / 145mA @ 24Vdc (per maglock)

Features

• Architectural pull handle with 3x300kg monitored magnets
• Low power consumption
• Fit to new doors or retrofit to existing doors
• Specially designed for sites where the door is not flush with the wall
• Ideal for high traffic sites that need high holding force and an aesthetic finish
• Can be cut down to bespoke size and sprayed in custom RAL colour
  Suitable for wooden, metal, or glass doors

Dimensions

• Product Height (mm) 2500
• Product Width (mm) 99.3
• Product Depth (mm) 61.5
• Product Weight (kg) 13

DATASHEET

BO900W
