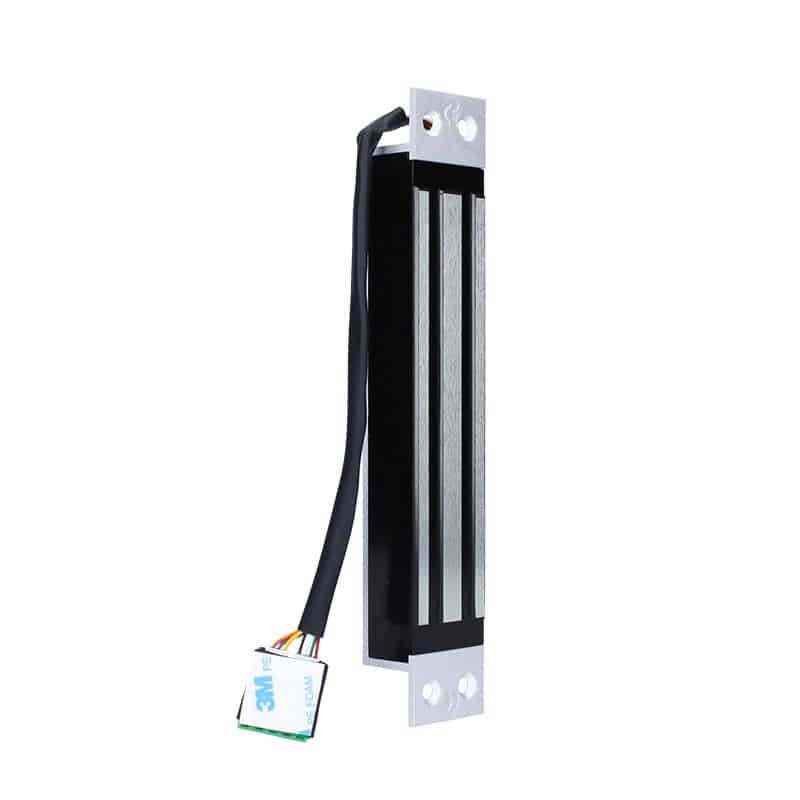

CDVI C3M11 Mortice Maglock
The C3M11 By Cdvi Is A High Performance But Cost-Effective Mortice Maglock Which Provides Up To 300Kg Of Holding Force
£42.50 exc VAT
- Number of Relays: 1 - lock status monitorin
- Fail Safe / Fail Secure: Fail safe
- Mounting: Mortice
- Min Temperature (°C) -40°C Max Temperature (°C) +70°C Min
- Voltage (V) 12Vdc Max Voltage (V) 24Vdc
- Voltage AC/DC: DC
- Max Power Consumption (mA) 285mA @12Vdc / 145mA @24Vdc
Features
- Up to 300kg holding force
- Cost-effective monitored magnetic lock
- Low power consumption
- No moving parts - simple to install and maintain
- Mortice mount for a neat aesthetic finish
Dimensions
- Product Height (mm) 228
- Product Width (mm) 38.5
- Product Depth (mm) 27.3
- Armature Plate Dimensions (LxWxH) 185 / 38 / 11mm
- Product Weight (kg) 1.75
DATASHEET
