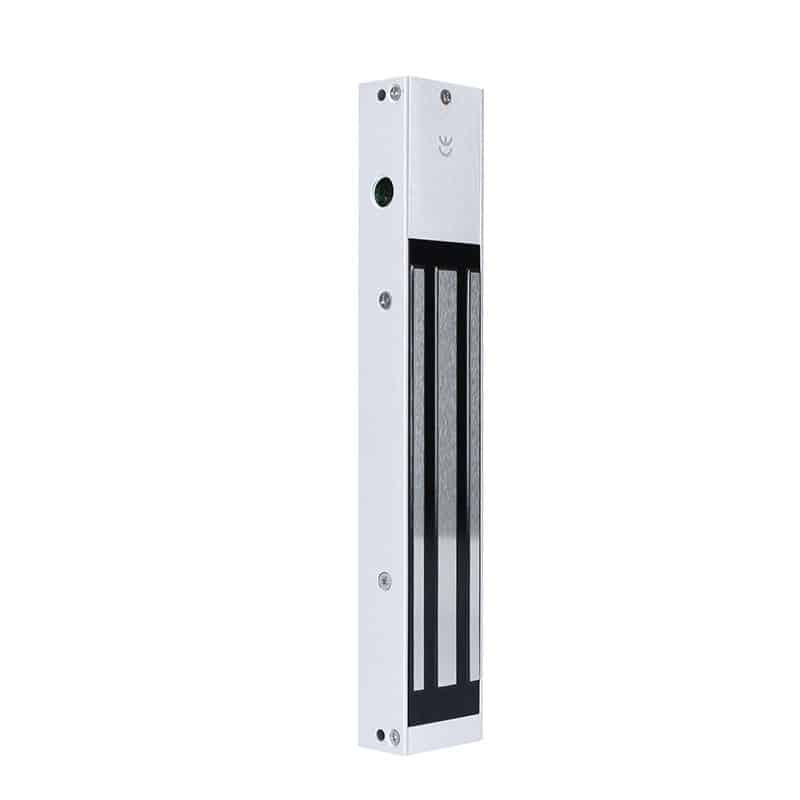

CDVI C3S11 Monitored Slimline Maglock
The C3S11 By Cdvi Is An Internal Surface Monitored Maglock Which Provides Up To 300Kg Of Holding Force
£42.50 exc VAT
- Number of Relays: 1 - lock status monitoring
- Fail Safe / Fail Secure: Fail safe
- Mounting: Surface
- Min Temperature (°C) -20°C Max Temperature (°C) +60°C Min
- Voltage (V) 12Vdc Max Voltage (V) 24Vdc
- Voltage AC/DC: DC Max
- Power Consumption (mA) 290mA @12Vdc / 145mA @24Vdc
Features
- Up to 300kg holding force
- Fire rated: EN1634-1 & 2 for 30 min
- Cost-effective monitored magnetic lock
- Low power consumption
- No moving parts - simple to install and maintain
- Simple surface mount
- Double version available - see C3S12
Dimensions
- Product Height (mm) 250
- Product Width (mm) 43
- Product Depth (mm) 27
- Armature Plate Dimensions (LxWxH) 185 x 38 x 11 mm
- Product Weight (kg) 1.8
DATASHEET
