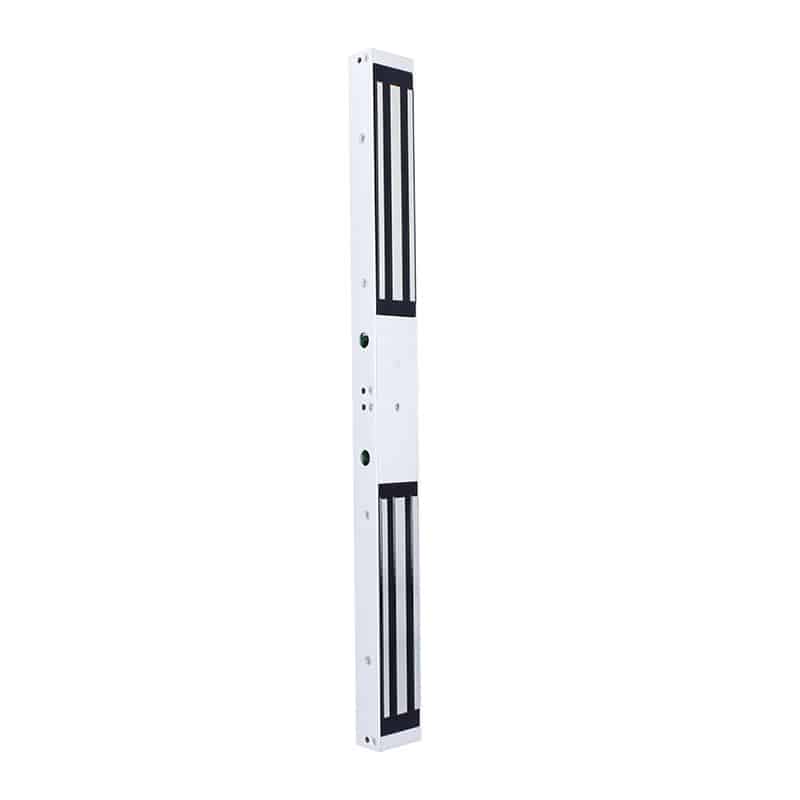

CDVI C3S12 Monitored Slimline Double Maglock
The C3S12 By Cdvi Is A Double Monitored Surface Maglock Which Provides 2 X 300Kg Holding Force For Double Doors
£84.85 exc VAT
- Fail Safe / Fail Secure: Fail safe
- Mounting: Surface
- Min Temperature (°C) -20°C Max Temperature (°C) +60°C Min
- Voltage (V) 12Vdc Max Voltage (V) 24Vdc
- Voltage AC/DC: DC
- Max Power Consumption (mA) 590mA @12Vdc / 285mA @24Vdc
Features
- Up to 600kg holding force spread over 2x 300kg magnets
- Cost-effective monitored magnetic lock
- Low power consumption
- No moving parts - simple to install and maintain
- Simple surface mount
- Single version available - see C3S11
Dimensions
- Product Height (mm) 500
- Product Width (mm) 43
- Product Depth (mm) 26
- Armature Plate Dimensions (LxWxH) 185 / 38 / 11mm
- Product Weight (kg) 3.55kg
DATASHEET
