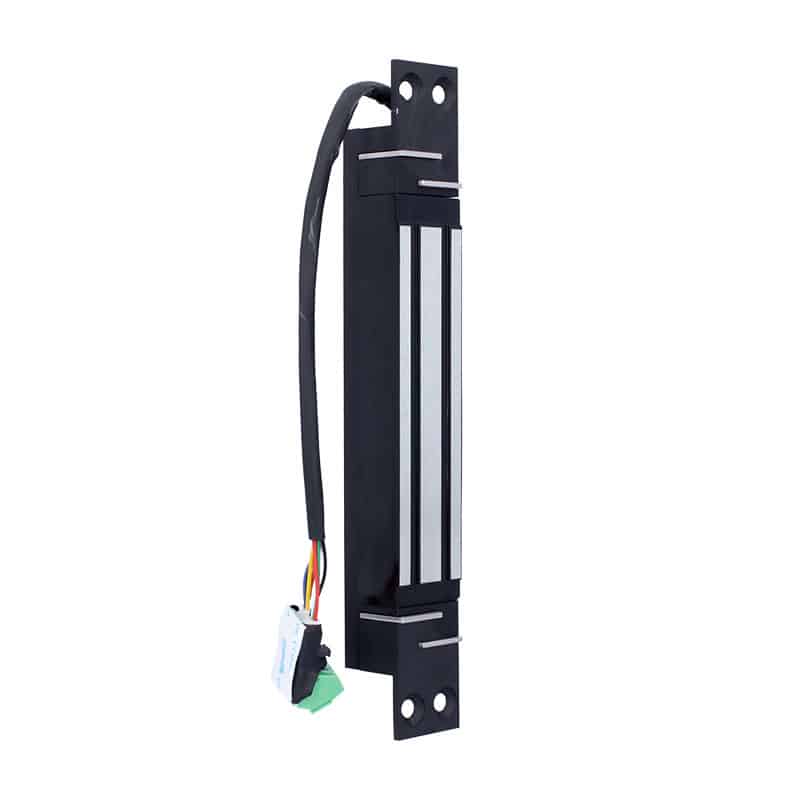

CDVI Cz3000 Self-Aligning Shearlock
The Cz3000 By Cdvi Is A Self-Aligning Shearlock With 1500Kg Holding Force. Ideal For Doors Which Do Not Always Rest At The Same Position
£188.00 exc VAT
- Fail Safe / Fail Secure: Fail safe
- Mounting: Mortice
- Min Temperature (°C) -40°C Max Temperature (°C) +60°C Min
- Voltage (V) 12Vdc Max Voltage (V) 24Vdc
- Voltage AC/DC DC Consumption (mA) 450mA
Features
- 1500kg holding force - a robust locking solution
- Fail safe with status monitoring
- Flush mount (surface housing available)
- Built-in electronic protection with an MOV
- Self-aligning technology - in case doors don't always rest in the same position
Dimensions
- Product Height (mm) 230
- Product Width (mm) 31.5
- Product Depth (mm) 37
- Armature Plate Dimensions (LxWxH) 230 / 30 / 37mm
- Product Weight (kg)1.2
