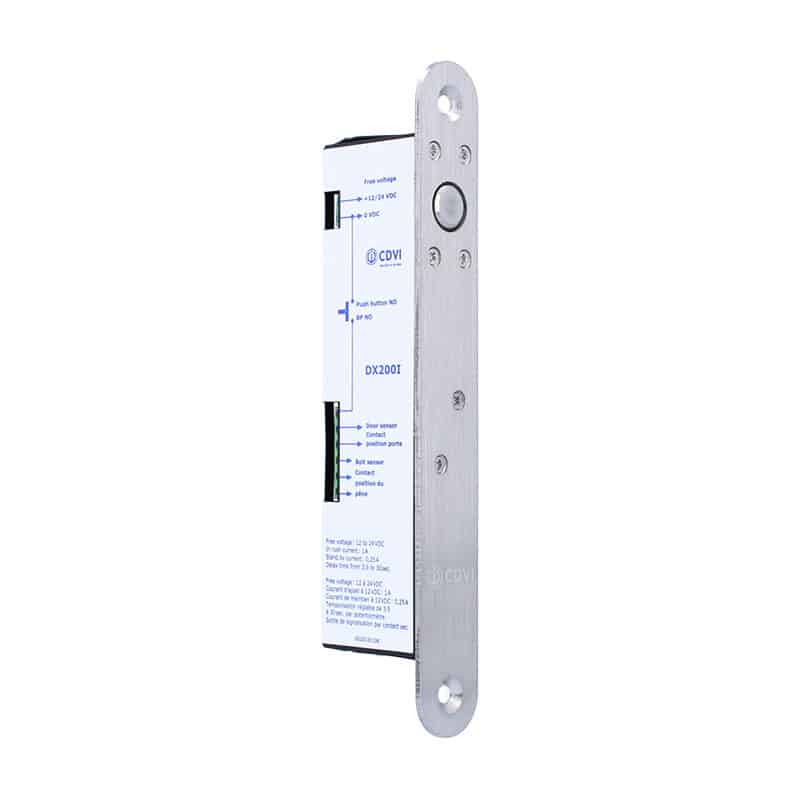

CDVI Dx200I Monitored Fail-Safe Solenoid Bolt
The Dx200 By Cdvi Is A Fail Safe Monitored Solenoid Bolt With Built-In Door Contacts And With Adjustable Relocking Time
£105.00 exc VAT
- Number of Relays: 1 x NO/NC
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 1,500kg
- Mounting: Mortice, vertical or horizontal
- Min Temperature (°C)-10°C Max Temperature (°C) +60°C
- Cycle testing: Tested for 100,000 cycles
- Min. Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 1,150mA @ 12Vdc / 750mA @ 24Vdc (in-rush)
Features
- Fail safe solenoid bolt
- Easy installation
- Monitored door and lock status
- Re-lock timer
- Saw proof roller bolt
Dimensions
- Product Height (mm) 163 mm
- Product Width (mm) 25 mm
- Product Depth (mm) 45 mm
- Product Diameter (mm)14 mm (bolt)
- Armature Plate Dimensions (LxWxH) 212 x 27 x 3 mm
- Product Weight (kg) 0,440 kg
DATASHEET
