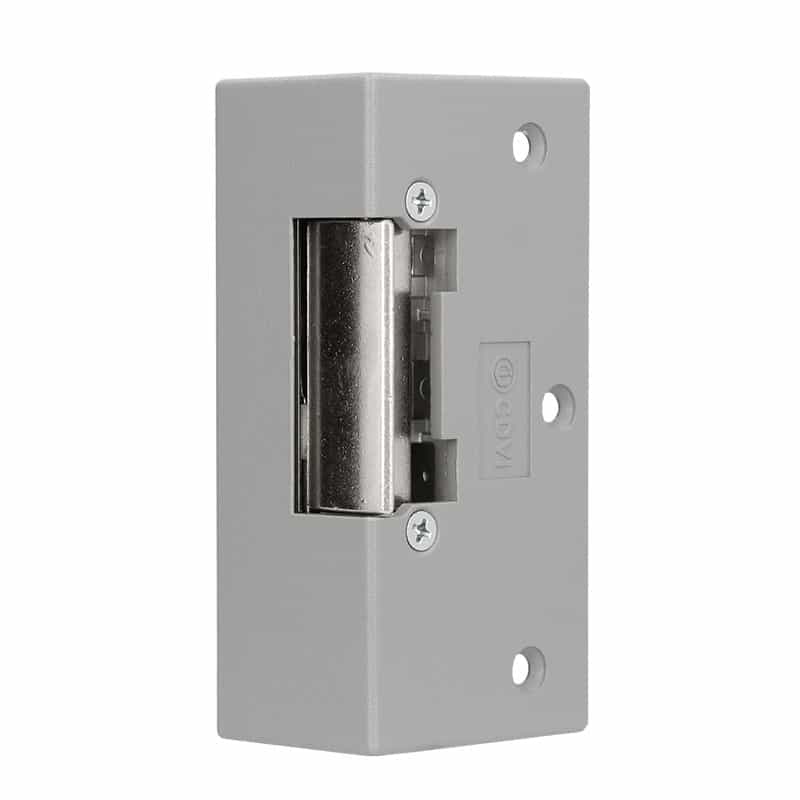

CDVI Gae-24-Cc 24Vdc Fail Secure Strike Kit Continuous Rated – Fixed Jaw
The Gae-24Cc By Cdvi Is A 24Vdc Fail Secure Strike That Comes With Mortice And Rim Plate And Features A Fixed Jaw And Built-In Mov
£19.75 exc VAT
- Fail Safe / Fail Secure: Fail secure
- Holding Force (kg) 300kg
- Mounting: Rim or mortice
- Min Temperature (°C) -15°C Max Temperature (°C) +40°C
- Cycle testing: Tested for 300,000 operations
- Jaw Type: Fixed
- Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 100mA
Features
- Mortice and rim plates included
- Fail secure EURO style strike
- Fixed jaw
- Continuous rated
- Powder coated steel
- Built-in MOV
Dimensions
- Product Height (mm) Rim: 105 mm / Mortice: 159 mm
- Product Width (mm) Rim: 51 mm / Mortice: 25 mm
- Product Depth (mm) Rim: 36.5 mm / Mortice: 31.5 mm
- Product Weight (kg) 0,320 kg
DATASHEET
