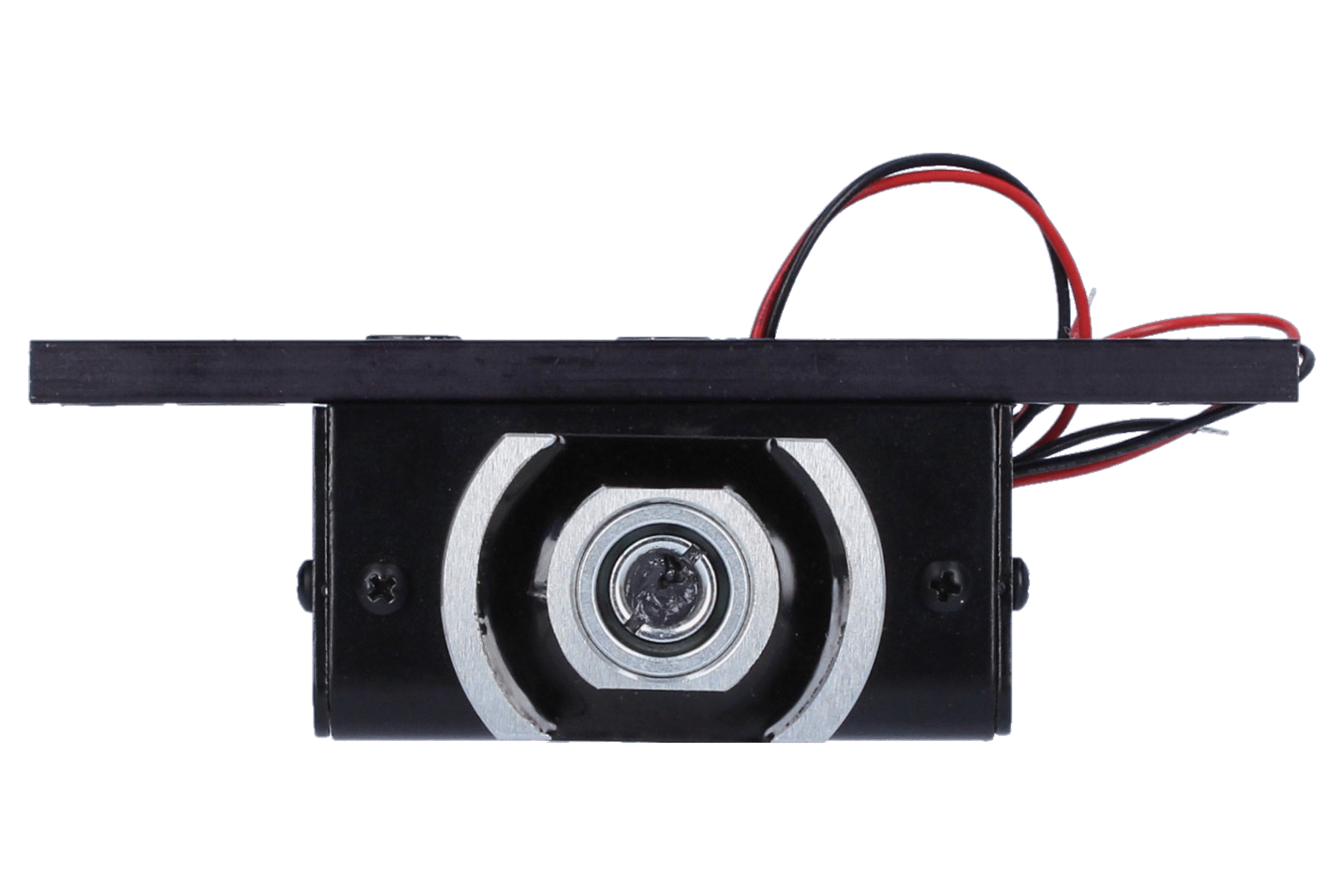

CDVI Hsm-600S High Security Micro Power Lock Direct Fix
The Hsm-600S By Cdvi Is A Micro Power Magock That Is Especially Useful Where There Is Not Enough Space For A Maglock Between Automatic Doors
£375.00 exc VAT
- Security Level: High security electromagnetic lock
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 680kg
- Mounting: Surface
- Cycle testing: Tested for 1,000,000 operations
- Min. Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 260mA @ 12Vdc, 120mA @ 24Vdc
Features
- High quality lock with built-in patented technology
- Rounded edges for an aesthetic finish
- Available in black or silver finish to suit any environment
- Supplied assembled and ready to install
- Adjustable bracket and armature
Dimensions
- Product Height (mm) 70 mm
- Product Width (mm) 39.4 mm
- Product Depth (mm) 42 mm
- Armature Plate Dimensions (LxWxH) 70 (W) x 26 (H) mm
- Product Weight (kg) 0,220 kg
