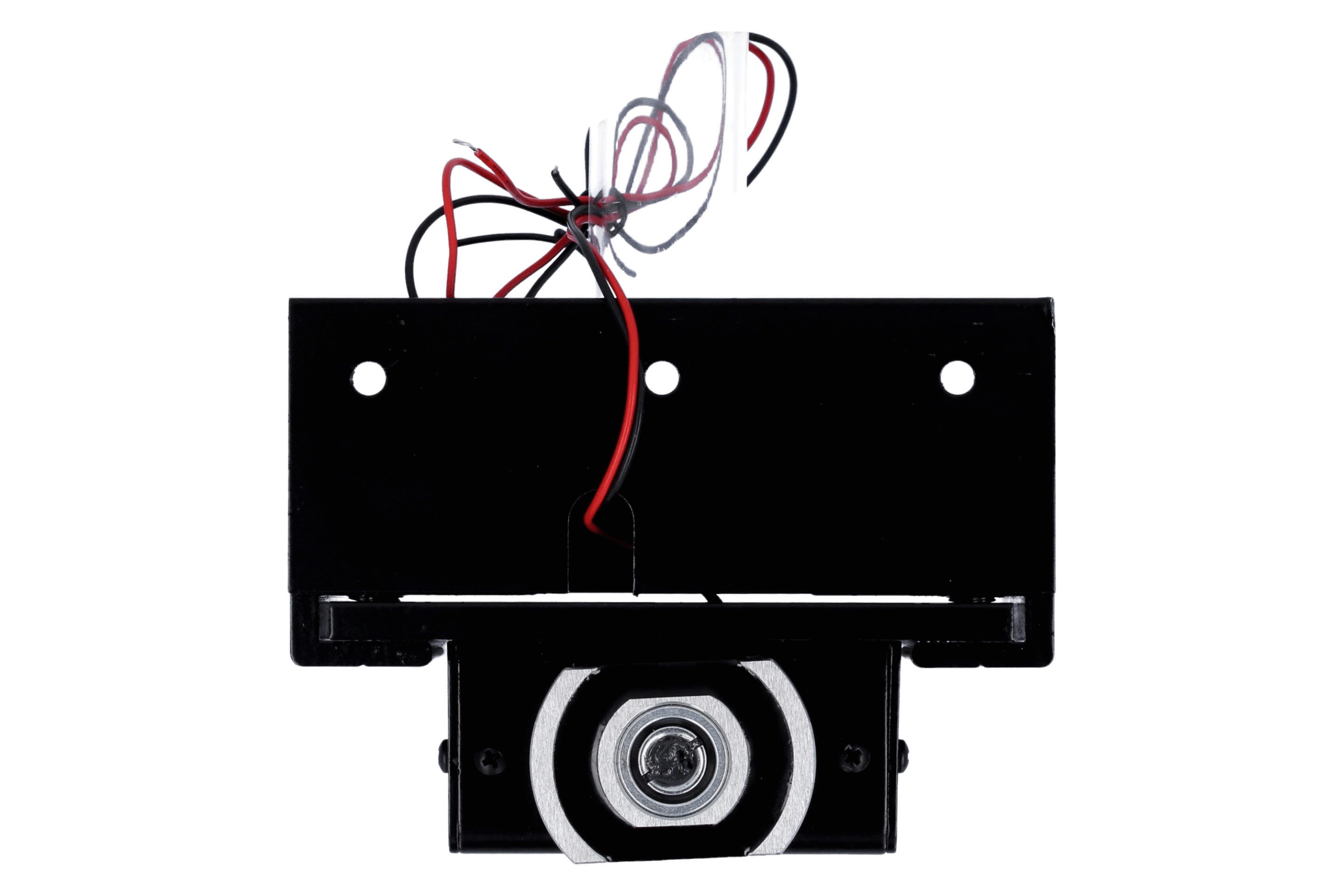

CDVI Hsm-600Sb High Security Micro Power Lock For Outward-Opening Door
The Hsm-600Sb By Cdvi Is A Micro Power Maglock That Is Ideal For Automatic Doors Where Space Between Operators Is Too Narrow For Maglocks
£388.50 exc VAT
- Security Level: High security electromagnetic lock
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 680kg
- Mounting: Surface
- Cycle testing: Tested for 1,000,000 operations
- Min. Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 260mA @ 12Vdc, 120mA @ 24Vdc
Features
- High quality lock with built-in patented technology
- Rounded edges for an aesthetic finish
- Available in black or silver finish to suit any environment
- Supplied assembled and ready to install
- Adjustable bracket and armature
Dimensions
- Product Height (mm) 116 mm
- Product Width (mm) 85 mm
- Product Depth (mm) 60 mm
- Armature Plate Dimensions (LxWxH) 70 (W) x 26 (H) mm
- Product Weight (kg) 0,560 kg
DATASHEET
