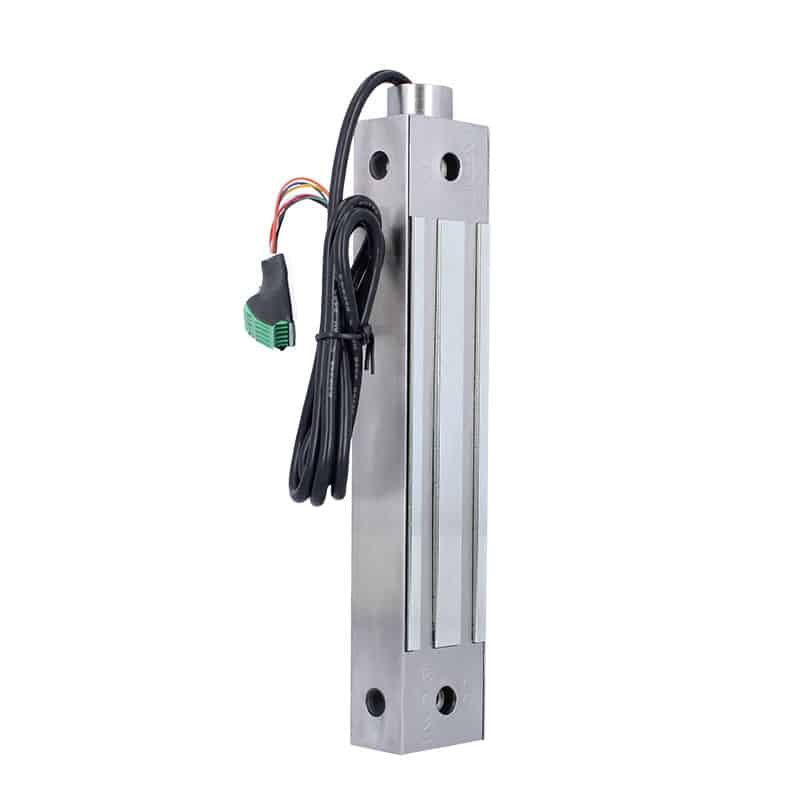

CDVI I400Sr External Surface Monitored Maglock
The I400Sr By Cdvi Is A Monitored Surface Maglock With A Holding Force Of Up To 400Kg And Cased In High Grade Stainless Steel
£114.95 exc VAT
- Number of Relays: 1
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 400kg
- Mounting: Surface
- Min Temperature (°C) -40C Max Temperature (°C) +60°C Min
- Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 480mA
Features
- 400kg holding force
- Monitored surface mount maglock
- Stainless steel construction
- For use in harsh environments
- 12-24Vdc
- Female M20 cable gland outlet
Dimensions
- Product Height (mm) 230 mm
- Product Width (mm) 43.5 mm
- Product Depth (mm) 29.5 mm
- Armature Plate Dimensions (LxWxH) 185 x 45 x 12 mm
- Armature Plate Weight (kg) 0.76
- Product Weight (kg) 1,700 kg
DATASHEET
