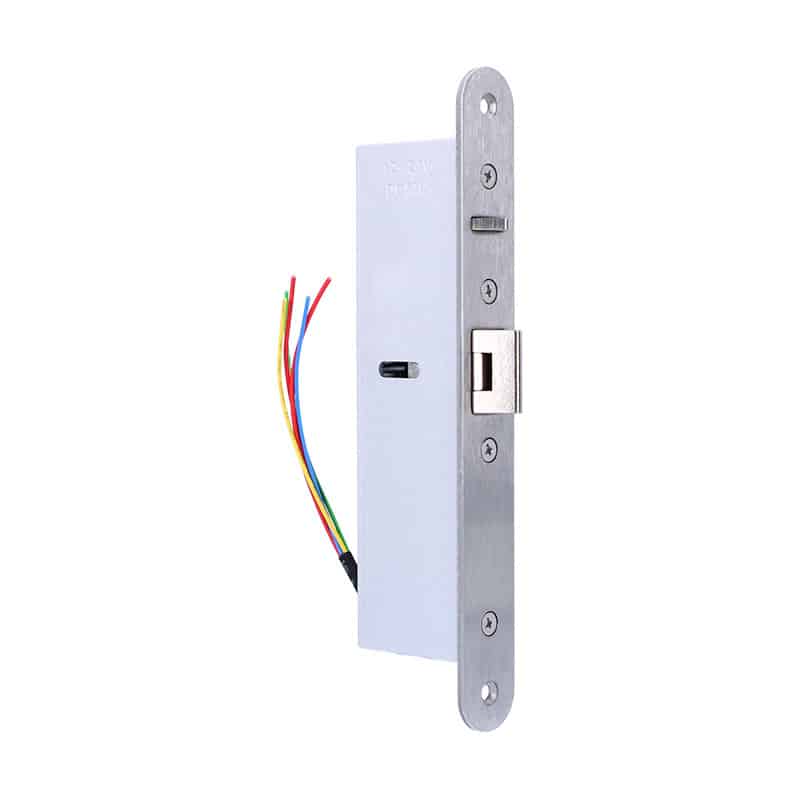

CDVI Ml-210N-Sw Reversible Electric Lock

• Number of Relays 1 x NO/NC
• Fail Safe / Fail Secure: Fail safe or fail secure (switchable)
• Holding Force (kg) 650kg
• Mounting: Mortice, vertical or horizontal
• Min Temperature (°C) -10°C Max Temperature (°C) +49°C
• Cycle testing: Tested for 1,000,000 operations
• Handing:Reversible
• Min. Voltage (V) 12Vdc/Vac Max Voltage (V) 24Vdc/Vac
• Voltage AC/DC: AC/DC
• Consumption (mA) 250mA @ 12Vdc, 150mA @ 24Vdc
• Contact Rating: 3A @ 125Vac

Features

• Reversible fail safe/fail secure electric lock
• Up to 650kg holding force
• Suitable for double action doors
• Horizontal or vertical mounting
• Tested for 1,000,000 cycles
• Lock status monitoring

Dimensions

• Product Height (mm) 210 mm
• Product Width (mm) 25 mm
• Product Depth (mm) 44 mm
• Armature Plate Dimensions (LxWxH) 150 x 20 x 2 mm
• Product Weight (kg) 0,594 kg

DATASHEET

ML-210N-SW
