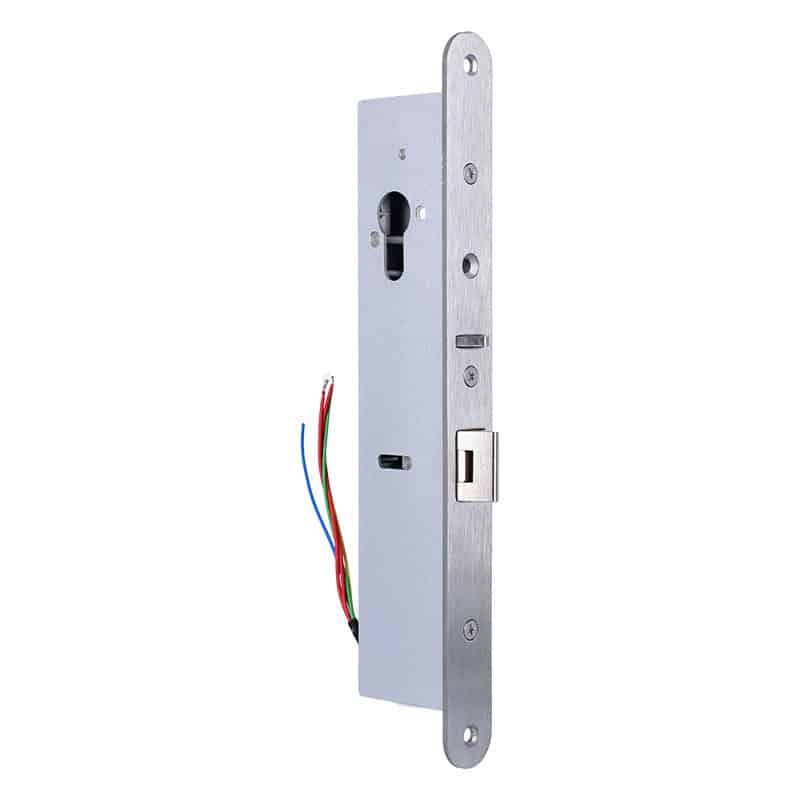

CDVI Ml-300-Sw Reversible Euro Cyclinder Electric Lock

• Number of Relays 1 x NO/NC
• Fail Safe / Fail Secure: Fail safe or fail secure (switchable)
• Holding Force (kg) 650kg
• Mounting: Mortice, vertical
• Min Temperature (°C) -10°C Max Temperature (°C) +49°C
• Cycle testing: Tested for 1,000,000 operations
• Handing: Reversible Min.
• Voltage (V) 12Vac/dc Max Voltage (V) 24Vac/dc
• Voltage AC/DC: AC/DC
• Consumption (mA) 250mA @ 12Vdc, 150mA @ 24Vdc
• Contact Rating: 3A @ 125Vac

Features

• Reversible fail safe/fail secure electric lock
• Up to 650kg holding force
• Suitable for double action doors
• Tested for 1,000,000 cycles
• Lock status monitoring

Dimensions

• Product Height (mm) 275 mm
• Product Width (mm) 25 mm
• Product Depth (mm) 44 mm
• Armature Plate Dimensions (LxWxH) 150 x 40 to 50 x 1.5 mm
• Product Weight (kg) 0,815 kg

DATASHEET

ML-300-SW
