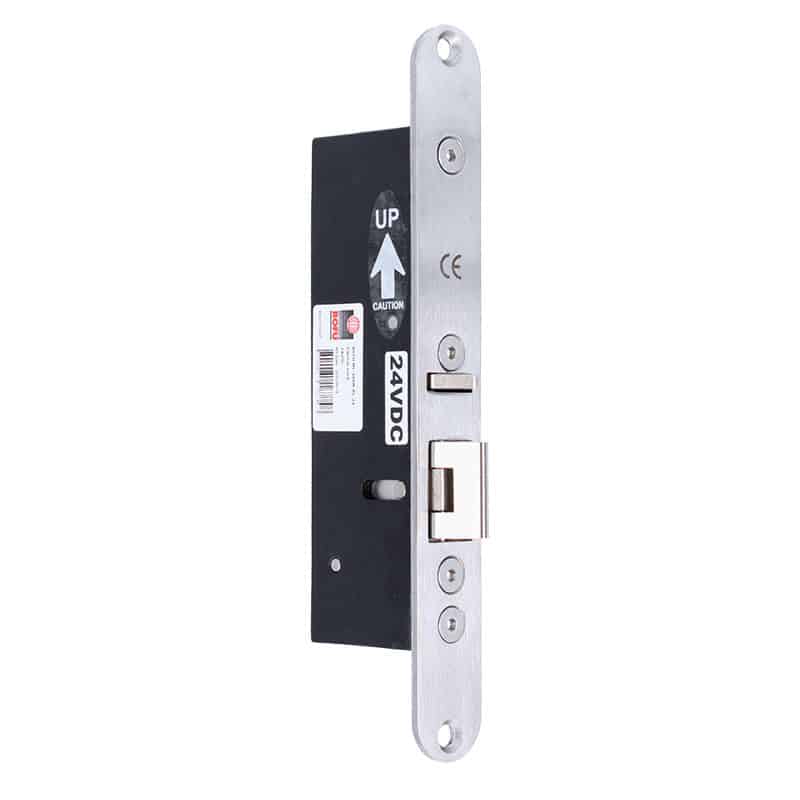

CDVI Ml-350M-Pl-24 Fire Rated 24V Compact Electric Lock
The Ml-350M-Pl-24 By Cdvi Is A 650Kg Fire-Rated Electric Lock Suited For Both Horizontal Or Vertical Mounting And Double Action Doors
£388.00 exc VAT
- Fail Safe / Fail Secure: Fail safe
- Pre-load: 225kg
- Min Temperature (°C) -10°C Max Temperature (°C) +49°C
- Cycle testing: Tested for 250,000 cycles
- Handing: Reversible
- Max Voltage (V) 24Vdc
- Voltage AC/DC: DC
- Max Power Consumption (mA) 180mA
Features
- Operates under sideload (225kg)
- Up to 650kg holding force
- Suitable for double action doors
- Fire tested to 60 minutes (EN14846)
- Lock status monitoring
- Bi-directional snib
- 24Vdc
Dimensions
- Product Height (mm) 200
- Product Width (mm) 25
- Product Depth (mm) 40
- Armature Plate Dimensions (LxWxH) 200/25/3mm
