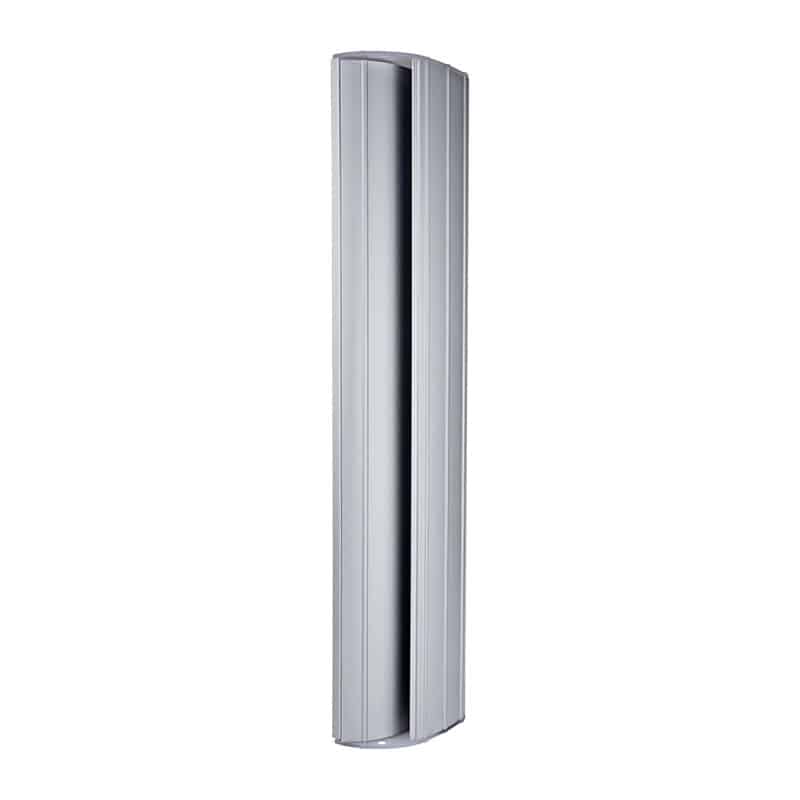

CDVI P300Evo 500Mm Architectural Handle With 1 X 300Kg Monitored Magnet And Led Indication
The P300Evo By Cdvi Is A 500Mm Handle Incorporating A 300Kg Monitored Magnet And Indicates The Status Of The Door (Open Or Closed) With Leds
£210.85 exc VAT
- Number of Relays 1 x NO/NC
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 300kg
- Mounting: Surface
- Min Temperature (°C) -20°C Max Temperature (°C) +60*C Min
- Voltage (V) 12Vdc Max Voltage (V) 48Vdc
- Voltage AC/DC: DC?
- Consumption (mA) 325mA @ 12Vdc / 165mA @24Vdc / 80mA @ 48Vdc (per maglock)
Features
- Surface mount architectural handle
- Low power consumption
- Retrofit or new build
- Vertical or horizontal installation
- Custom RAL colours (optional)
- Visual feedback with blue and green LED
Dimensions
- Product Height (mm) 500 mm
- Product Width (mm) 105 mm
- Product Depth (mm) 63 mm
- Product Weight (kg) 2,5 kg
