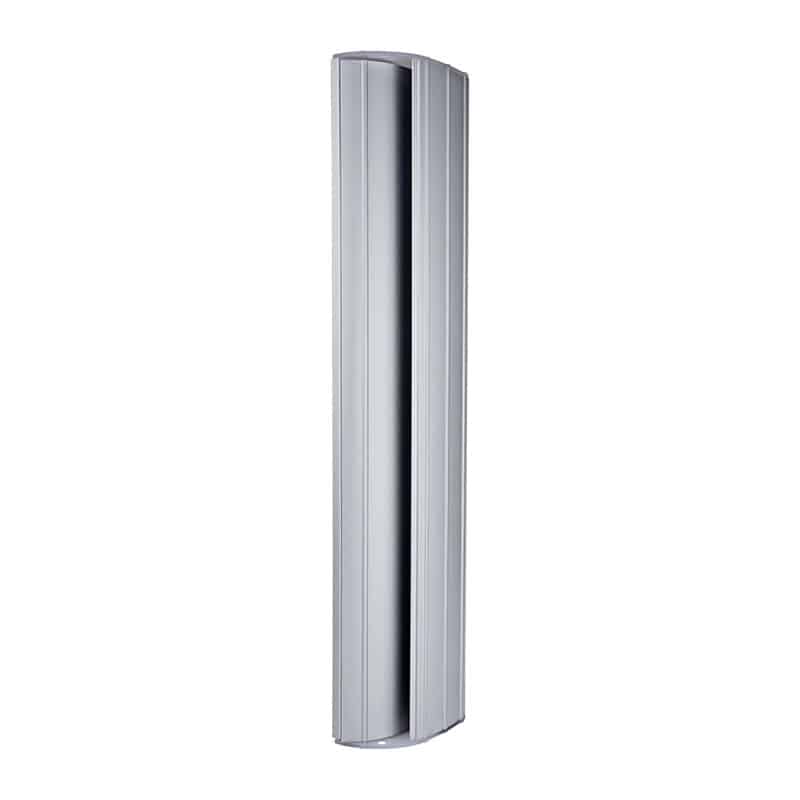

CDVI P600Evo 700Mm Architectural Handle With 2 X 300Kg Monitored Magnets And Led Indication
The P600Evo By Cdvi Is A 700Mm Handle Incorporating 2 X 300Kg Monitored Magnets And Indicates The Status Of The Door (Open Or Closed) With Leds
£295.00 exc VAT
- Number of Relays: 1 x NO/NC (per maglock)
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 2 x 300kg
- Mounting: Surface
- Min Temperature (°C) -20°C Max Temperature (°C) +60°C Min
- Voltage (V) 12 Max Voltage (V) 48
- Voltage AC/DC: DCConsumption (mA) 325mA @ 12Vdc / 165mA @24Vdc / 80mA @ 48Vdc (per maglock)
Features
- Surface mount architectural handle
- Low power consumption
- Retrofit or new build
- Vertical or horizontal installation
- Custom RAL colours (optional)
- Visual feedback with blue and green LEDs
Dimensions
- Product Height (mm) 700 mm
- Product Width (mm) 105 mm
- Product Depth (mm) 63 mm
- Product Weight (kg) 4,5 kg
DATASHEET
