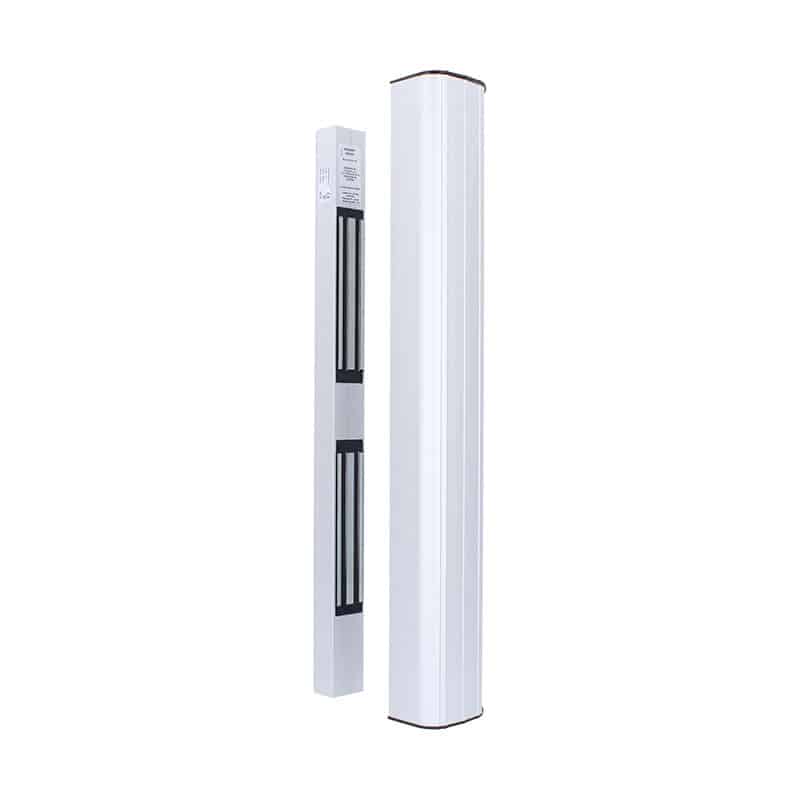

CDVI P600Rp 600Mm Architectural Handle With 2 X 300Kg Monitored Magnets
The P600Rp By Cdvi Is A 600Mm Handle Incorporating 2 X 300Kg Monitored Magnets And Can Be Fitted Externally To New Or Existing Doors
£273.00 exc VAT
- Number of Relays:1 x NO/NC (per maglock)
- Fail Safe / Fail Secure: Fail safe
- Mounting: Surface, vertical or horizontal
- Min Temperature (°C) -40°C Max Temperature (°C) +70°C Min
- Voltage (V) 12 Vdc Max Voltage (V) 48 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 290mA @ 12Vdc / 145mA @ 24Vdc (per maglock) / 145mA @ 48Vdc (2 maglocks)
Features
- Surface mount 600kg architectural handle
- Low power consumption
- Retrofit or new build
- Easy and quick installation
- Aesthetic profile
- Suitable for wood, metal & glass doors
Dimensions
- Product Height (mm) 600 mm
- Product Width (mm) 105 mm
- Product Depth (mm) 63 mm
- Product Weight (kg) 4.55 kg
DATASHEET
