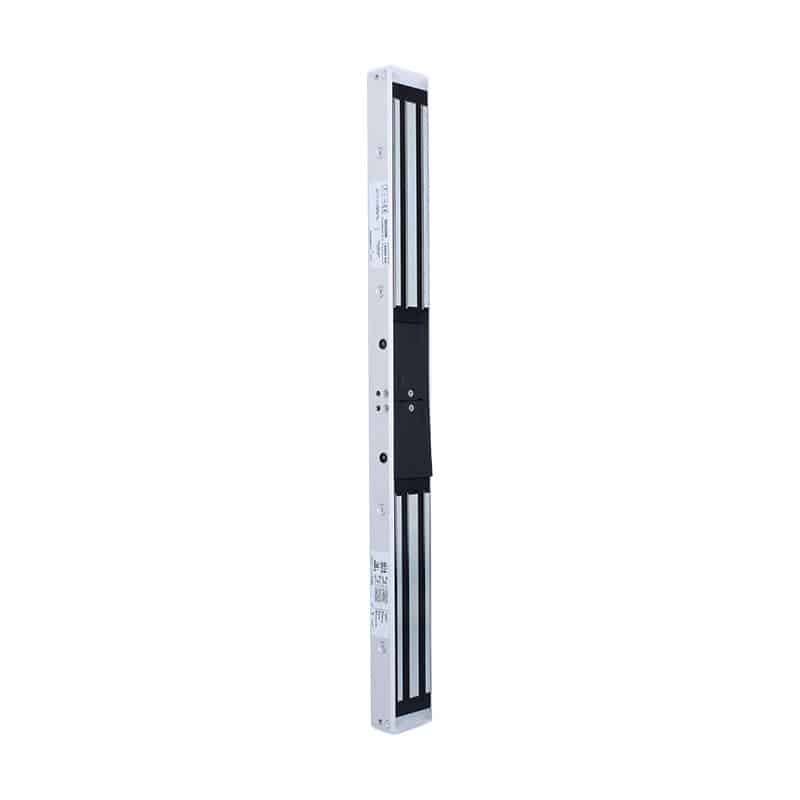

CDVI Sd300M Monitored Slimline Double Maglock
The Sd300M By Cdvi Is A Monitored Surface Double Maglock For Double Doors With A Holding Force Of Up To 300Kg On Each Side
£172.50 exc VAT
- Number of Relays: 2 - lock status monitoring
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 2 x 300kg
- Mounting: Surface
- Min Temperature (°C) -20°C Max Temperature (°C) +60°C Min
- Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 590mA @ 12Vdc / 285mA @ 24Vdc
Features
- Double electro-magnetic lock
- 300kg per side for a total 600kg?of holding force
- Low power consumption
- Monitored with LED indication
- Rounded edges & safety ropes to ensure safer installation
- Premium quality magnetic locks - robust security for your projects
Dimensions
- Product Height (mm) 504 mm
- Product Width (mm) 45 mm
- Product Depth (mm) 26 mm
- Armature Plate Dimensions (LxWxH) 185 x 38 x 11 mm
- Product Weight (kg) 3,700 kg
DATASHEET
