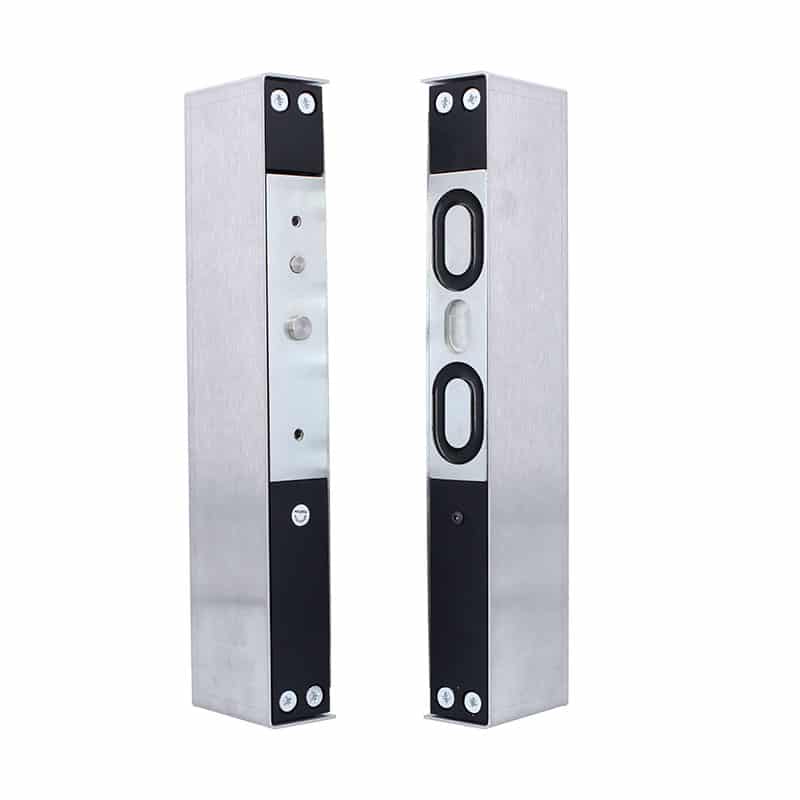

CDVI Shl1200 Traditional Shearlock
The Shl1200 By Cdvi Is A Traditional Shearlock For Single Doors Which Always Rest In The Same Position And Include High Quality Door Closers
£215.00 exc VAT
- Number of Relays 1
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 1,200kg
- Mounting: Mortice
- Min Temperature (°C) -20°C Max Temperature (°C) +60°C Min
- Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC DC
- Consumption (mA) 1800mA
Features
- 1200kg holding force with both magnetic and mechanical locking
- Fail safe lock - for doors which need to automatically unlock in case of power loss
- Live status monitoring for greater site visibility
- Mortice mount (surface housing available - see SHL1200-H)
- Built-in MOV for protection against electronic surges
Dimensions
- Product Height (mm) 267 mm
- Product Width (mm)30 mm
- Product Depth (mm) 32 mm
- Armature Plate Dimensions (LxWxH) 267 x 30 x 35 mm Product
- Weight (kg) 1,350 kg
