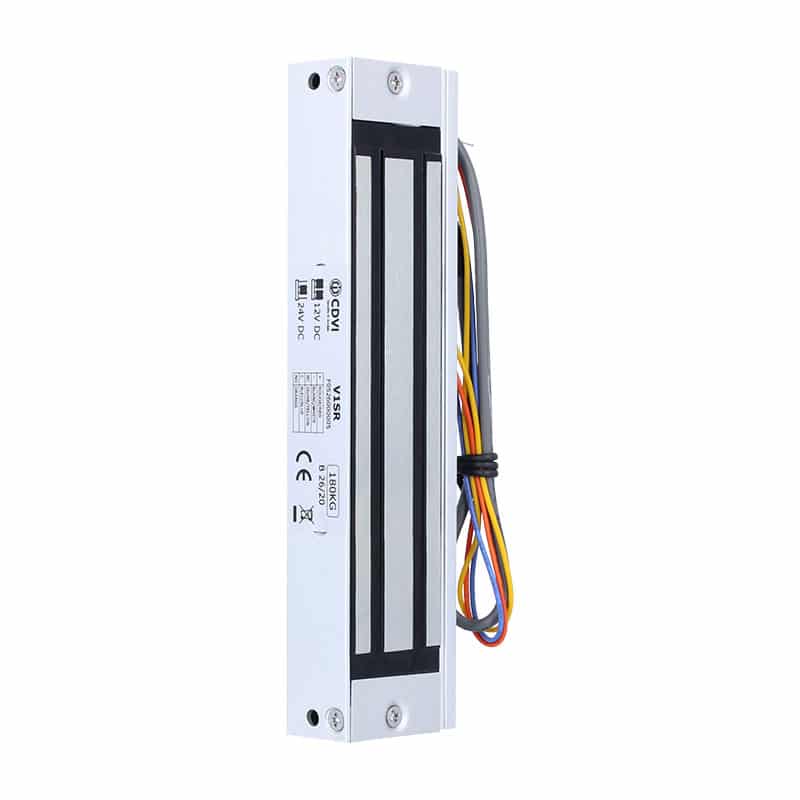

CDVI V1Sr Monitored Maglock
The V1Sr Is An Internal Surface Maglock With Up To 180Kg Holding Force And Is A Durable Locking Solution With Live Status Monitoring
£62.85 exc VAT
- Number of Relays: 1
- Fail Safe / Fail Secure:Fail safe
- Holding Force (kg)180kg
- Mounting: Surface
- Min Temperature (°C) -40°C Max Temperature (°C) +60°C Min
- Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC:DC
- Consumption (mA)?450mA
Features
- Surface mount electro-magnetic lock
- Up to 180kg holding force for robust security
- 12 or 24Vdc operation
- Live status monitoring
- Patented locking technology
- Visual LED indication
- Z&L bracket available - see 180-ZL
Dimensions
- Product Height (mm) 166 mm
- Product Width (mm) 34.5 mm
- Product Depth (mm) 21 mm
- Armature Plate Dimensions (LxWxH) 130 x 32 x 9 mm
- Armature Plate Weight (kg) 0.26kg
- Product Weight (kg) 0,580 kg
DATASHEET
