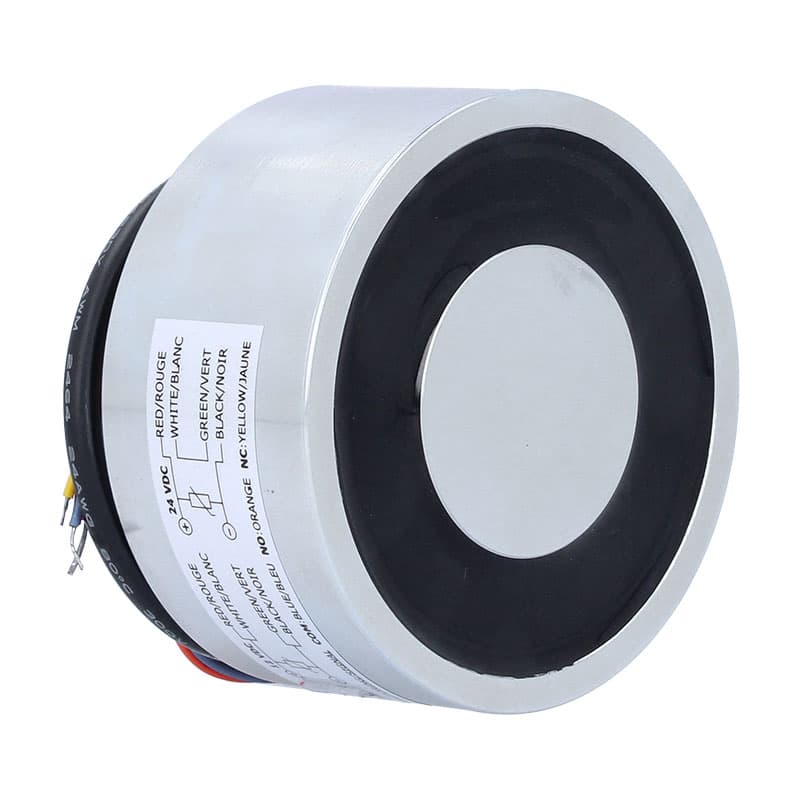

CDVI V250-D80R Round Maglock (250Kg)
The V250-D80R Is A Round Maglock With Up To 250Kg Holding Force. Ideal Hold-Open Magnet For Automatic Doors And Gates
£158.50 exc VAT
- Number of Relays: 1
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 250kg
- Mounting: Surface
- Min Temperature (°C) -40°C Max Temperature (°C) +60C Min
- Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 440mA
Features
- Round surface mount electro-magnetic lock
- 250kg holding force
- No residual magnetism
- IP65 rated for internal or external use
- Ideal for external barrier rooms or gates
Dimensions
- Product Depth (mm) 38 mm
- Product Diameter (mm) 80 mm
- Armature Plate Dimensions (LxWxH) 80 x 12 mm
- Armature Plate Weight (kg) 0.4
- Product Weight (kg) 1,150 kg
DATASHEET
