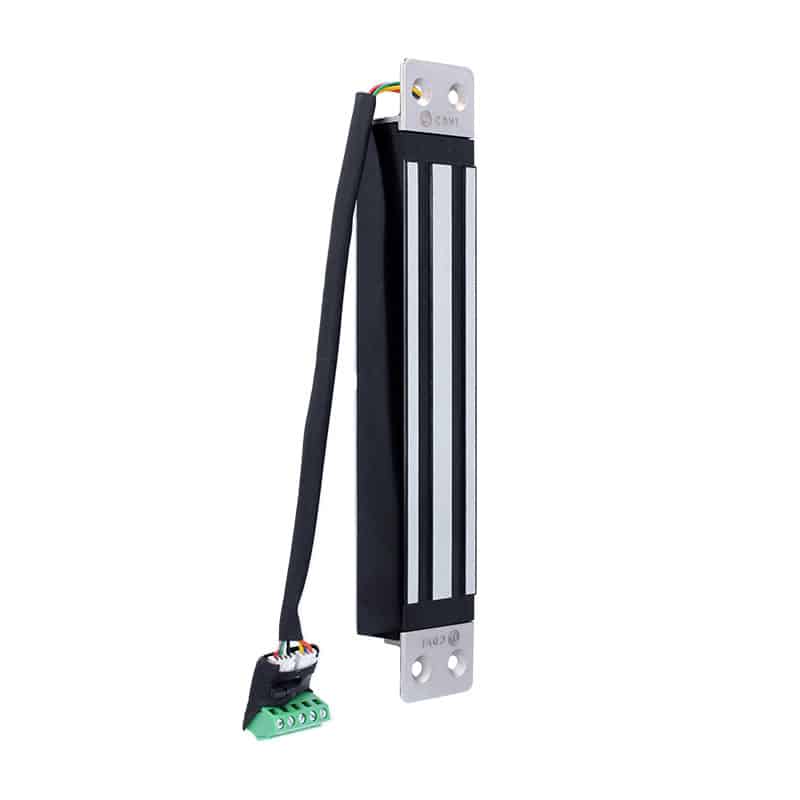

CDVI V3Er Monitored Mortice Maglock

• Number of Relays: 1
• Fail Safe / Fail Secure: Fail safe
• Holding Force (kg) 300kg
• Mounting: Mortice
• Min Temperature (°C) -40°C Max Temperature (°C) +70°C Min
• Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
• Voltage AC/DC: DC
• Consumption (mA) 285mA @ 12Vdc / 145mA @ 24Vdc

Features

• Mortice mount electro-magnetic lock
• Up to 300kg holding force for robust security
• 12 or 24Vdc operation
• Live status monitoring
• No moving parts
• Great for swing or sliding doors - usually mounted into the transom

Dimensions

• Product Height (mm) 228 mm
• Product Width (mm) 38.5 mm
• Product Depth (mm) 27 mm
• Armature Plate Dimensions (LxWxH) 185 x 38 x 11 mm
• Armature Plate Weight (kg) 0.59kg
• Product Weight (kg) 1,100 kg

DATASHEET

V3ER
