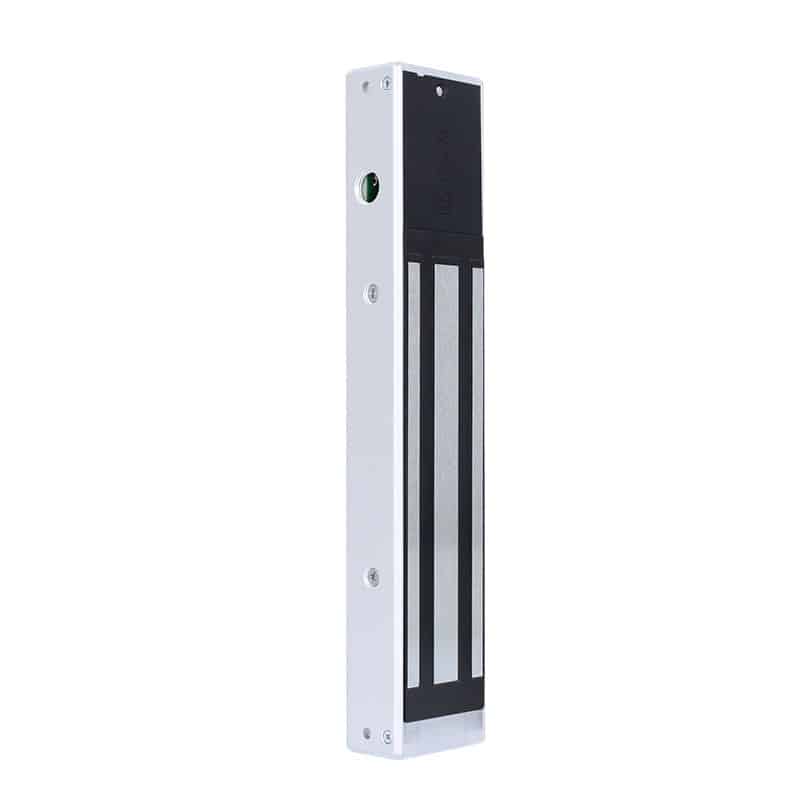

CDVI V4Sr Monitored Maglock
The V4Sr By Cdvi Is An Internal Surface Maglock With Up To 400Kg Holding Force
£93.75 exc VAT
- Number of Relays: 1
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 400kg
- Mounting: Surface
- Min Temperature (°C) -20°C Max Temperature (°C) +60*C Min
- Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 500mA
Features
- Surface mount electro-magnetic lock
- Up to 400kg holding force for robust security
- 12 or 24Vdc operation
- Live status monitoring
- Patented locking technology
- Visual LED indication
- Z&L bracket available - see 300-ZL
Dimensions
- Product Height (mm) 254 mm
- Product Width (mm) 50 mm
- Product Depth (mm) 30 mm
- Armature Plate Dimensions (LxWxH) 185 x 45 x 12 mm
- Armature Plate Weight (kg) 0.76kg
- Product Weight (kg) 1,450 kg
DATASHEET
