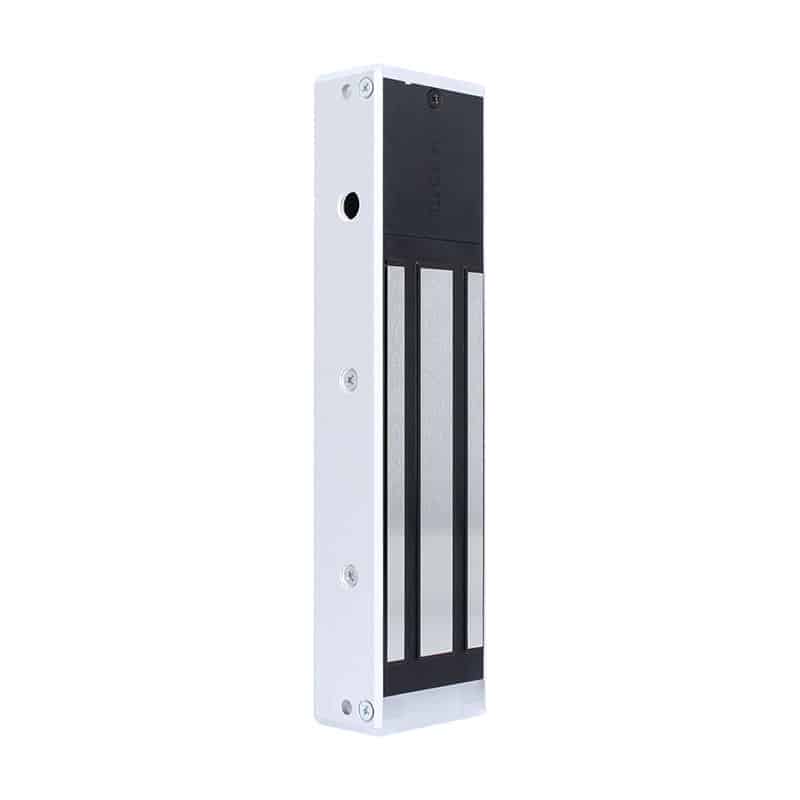

CDVI V5Sr Fire-Rated Monitored Standard Maglock
The V5Sr By Cdvi Is An Internal Surface Maglock With Up To 500Kg Holding Force. It Benefits From Innovative &Amp; Patented Led Visual Feedback
£111.00 exc VAT
- Number of Relays: 1
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 500kg
- Mounting: Surface
- Min Temperature (°C) -20°C Max Temperature (°C) +60°C
- Cycle testing: Tested for 5,000,000 operations
- Min. Voltage (V) 12 Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA) 480mA
Features
- Surface mount electro-magnetic lock
- Up to 500kg holding force for robust security
- 12 or 24Vdc operation
- Fire rated for 30 mins under EN1634-1 and EN1634-2
- Live status monitoring
- Patented locking technology
- Visual LED indication
- Z&L bracket available - see 500-ZL
Dimensions
- Product Height (mm) 266 mm
- Product Width (mm) 66 mm
- Product Depth (mm) 40 mm
- Armature Plate Dimensions (LxWxH) 185 x 60 x 12 mm
- Armature Plate Weight (kg) 1.03kg
- Product Weight (kg) 2,860 kg
