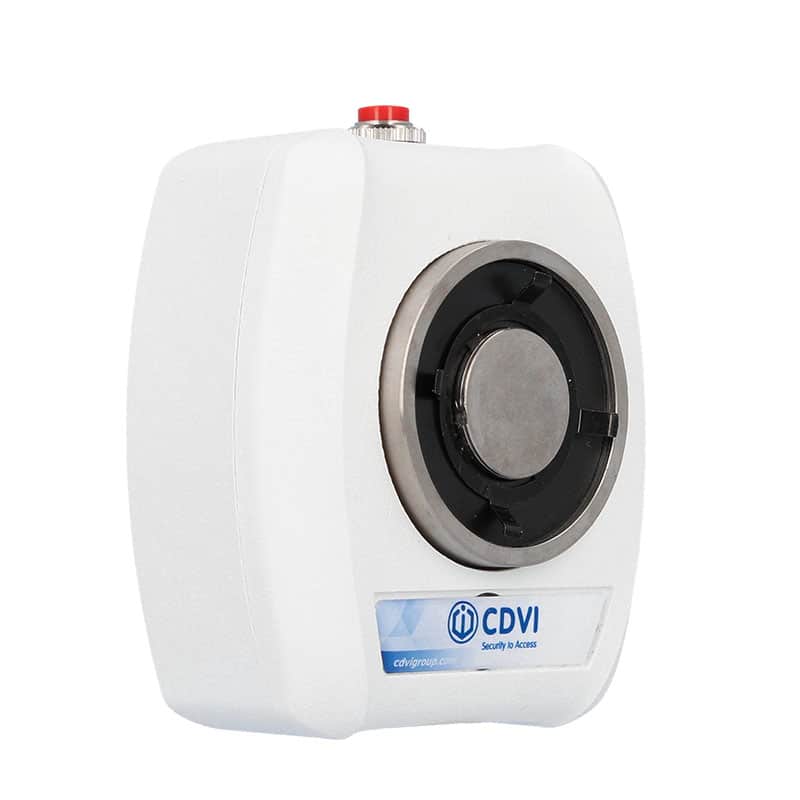

CDVI Vir-A5 White Wall-Mounted Magnetic Door Holder
The Vir-A5 By Cdvi Is A Fire Rated (60 Mins) Wall-Mounted Magnetic Door Holder That Immediately Releases Doors In The Event Of A Fire Alarm
£43.50 exc VAT
- Fail Safe / Fail Secure: Fail safe
- Holding Force (kg) 50kg
- Mounting: Surface
- Cycle testing: Tested for 25,000 cycles in both manual and electrical activation
- Min. Voltage (V) 24Vdc Max Voltage (V) 24 Vdc
- Voltage AC/DC: DC
- Consumption (mA)?80mA
Features
- Wall mounted magnetic door holder
- Automatically releases the door to close in the event of a fire alarm
- 50kg holding force for even the heaviest doors
- Universal armature
- CE EN1155 certified
- Fire tested to 60 minutes under EN1634-2
Dimensions
- Product Height (mm) 93 mm
- Product Width (mm) 80 mm
- Product Depth (mm) 42.5 mm
- Armature Plate Dimensions (LxWxH) 60 x 60 x 66 mm
- Product Weight (kg) 0,460 kg
DATASHEET
