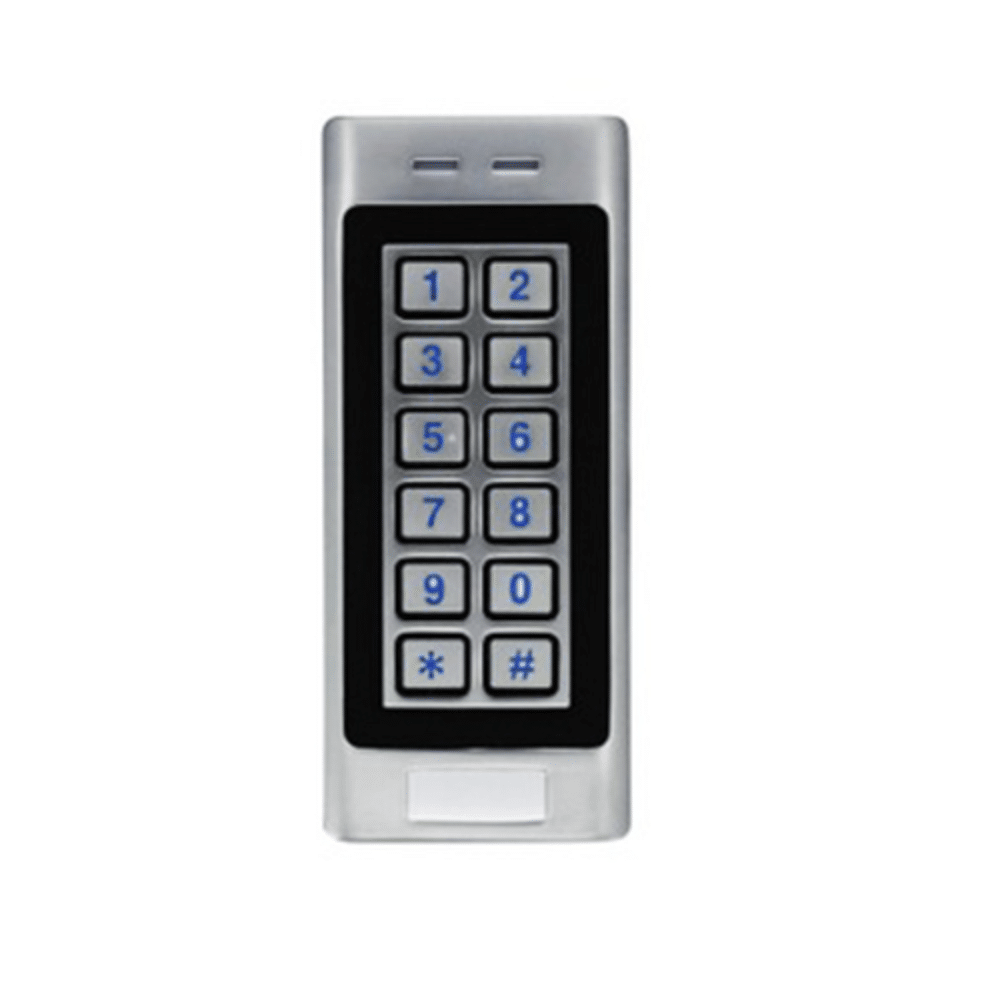

DG1000N 12Vdv Weatherproof Keypad With Proximity
The Slim Design Of This Keypad Makes It Ideal For Installations Where Space Is Restricted. Enables Entry By Pin Codes Or Proximity Cards/Fobs For Up To 1000 Users
£45.00 exc VAT
- Standalone operation
- Weatherproof casing (IP66)
- Built-in proximity reader (uses EM cards and fobs) Up to 1000 users total
- Back-lit keypad with audio keys
- LED status indication
- Tamper alarm
- Voltage: 12Vdc
- Current draw: 80mA max (50mA idle)
- Output relay: COM, NO, NC (3A max)
- Adjustable output time: 1-99 seconds, plus latch mode Proximity read range: Up to 6cm
- Zinc alloy electroplated case
- Pre-wired fly-lead (2 metres)
Dimensions
130mm(H) x 56mm(W) x 23mm(D)
