DDA Toilet Locking System For Automatic Swing Door Operators – Single Gang Touch Free

• Disabled Persons Toilet Locking System for Automatic Sliding Door Operators and designed for DDA compliance
• It can be easily integrated into a toilet with an existing Automatic Door Opener or you can purchase an Automatic Door operator from One Stop Access
• Operated by two JWS Touch Sensors that controls Entry by Opening and Locking the door at the appropriate times interfacing with both the Automatic Door operator and a locking device (maglock)

Features

• Touch the entry sensor. The door opener will activate to provide access
• Touch the Red Sensor to lock the door. To confirm the door is locked, the indicators on both Sensors will flash showing the toilet is engaged and inhibiting the entry sensor
• Touch the Green Sensor and the indicator stops flashing. The door will be unlocked and the door opener activated. The entry sensor stops flashing and becomes operable once again to provide access

Dimensions

Single Gang: 88(h) x 88(w) x 5(d) plus 35 mm back box

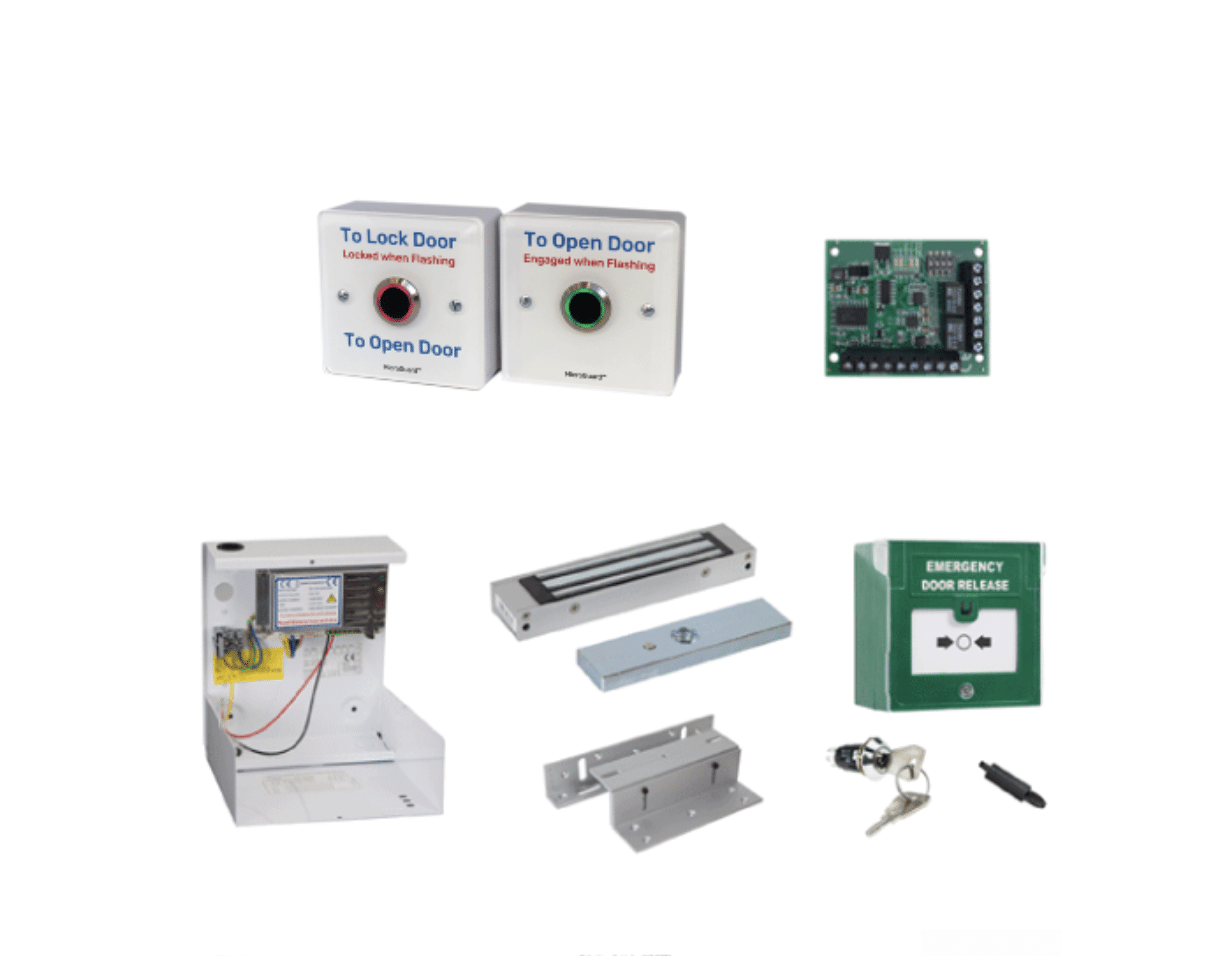

Contents

• DPTS PCB
• 12v 1A PSU (powers DPTS & lock)  (200 x 225 x 75mm)
• Open (External) Touch Sensors with built-in emergency override key switch (2 keys included)
• Lock (Internal) Touch Sensor
• Resettable Breakglass with cover and one reset key
• Slimline Maglock with Integrated Door Status Contact
• Z and L Bracket Kit
• User labels, Wiring diagram and Customer Guide

DATASHEET

DPTS KIT +_swing door
