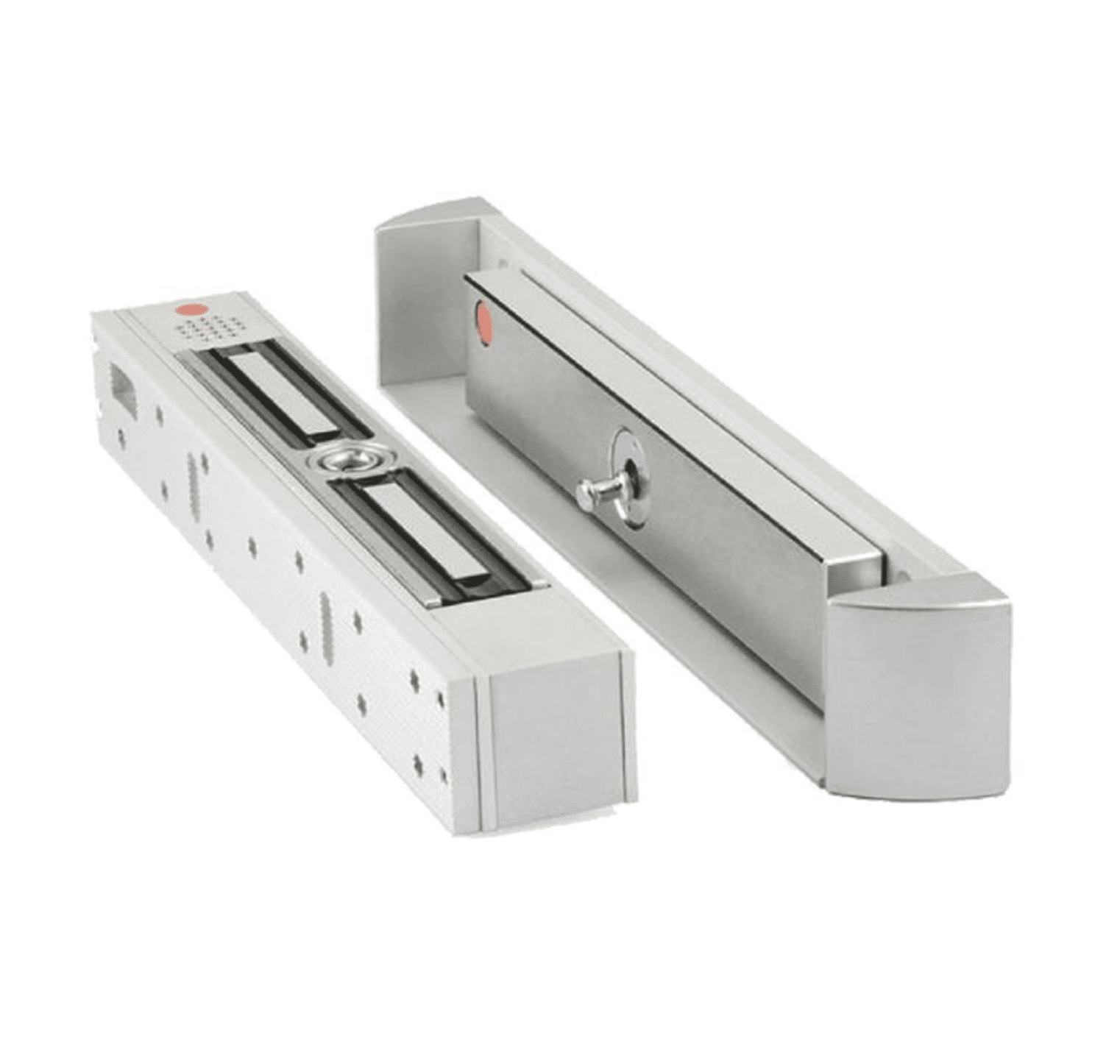

DORMAKABA LP2400 High Power 12V/24Vdc Monitored Surface Maglock With Led Indication (815Kg/1800Lb)
The Dormakaba Is A Compact Surface Elctro Magnetic Door Magnet. The Unit Features A Conical Aperture To Receive A Strong Alloy Pin For Both Magnetic And Mechanical Holding Force
£140.00 exc VAT
- Surface mounting for easy retro-fit
- Dual monitoring - Locking and door position
- Magnet will release with up to 100kg of side load pressure when the power is removed
- Holding force 815kg
- There is a 5 year guarantee and it comes with built in LED and dual monitoring
- Magnet Depth 30mm
- Magnet Height 36mm
- Magnet Length 218mm
- Plate Depth Armature - 12mm / Housing 30mm
- Plate Height Armature - 30mm / Housing 38mm
- Plate Width Armature - 180mm / Housing 251mm
DATASHEET
