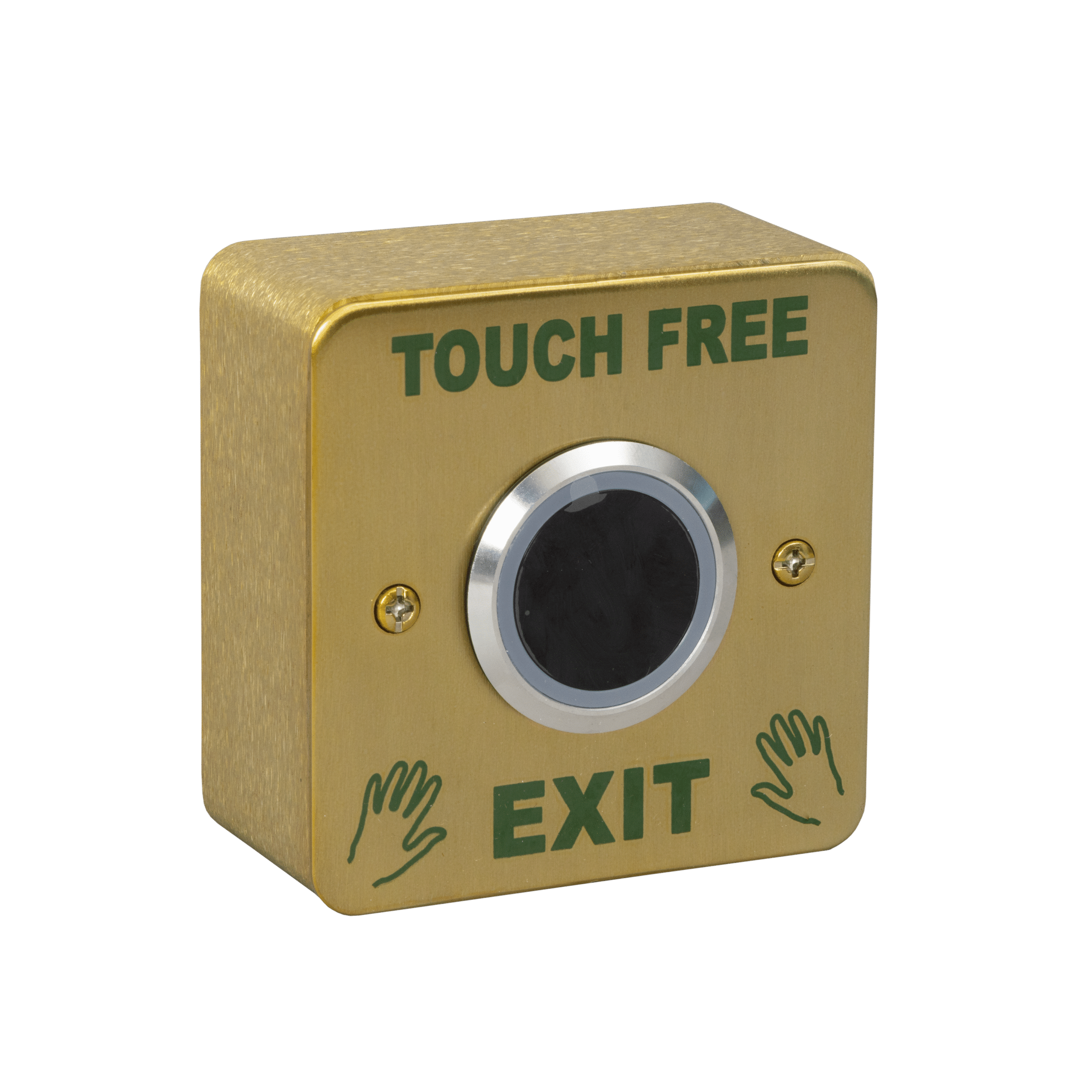

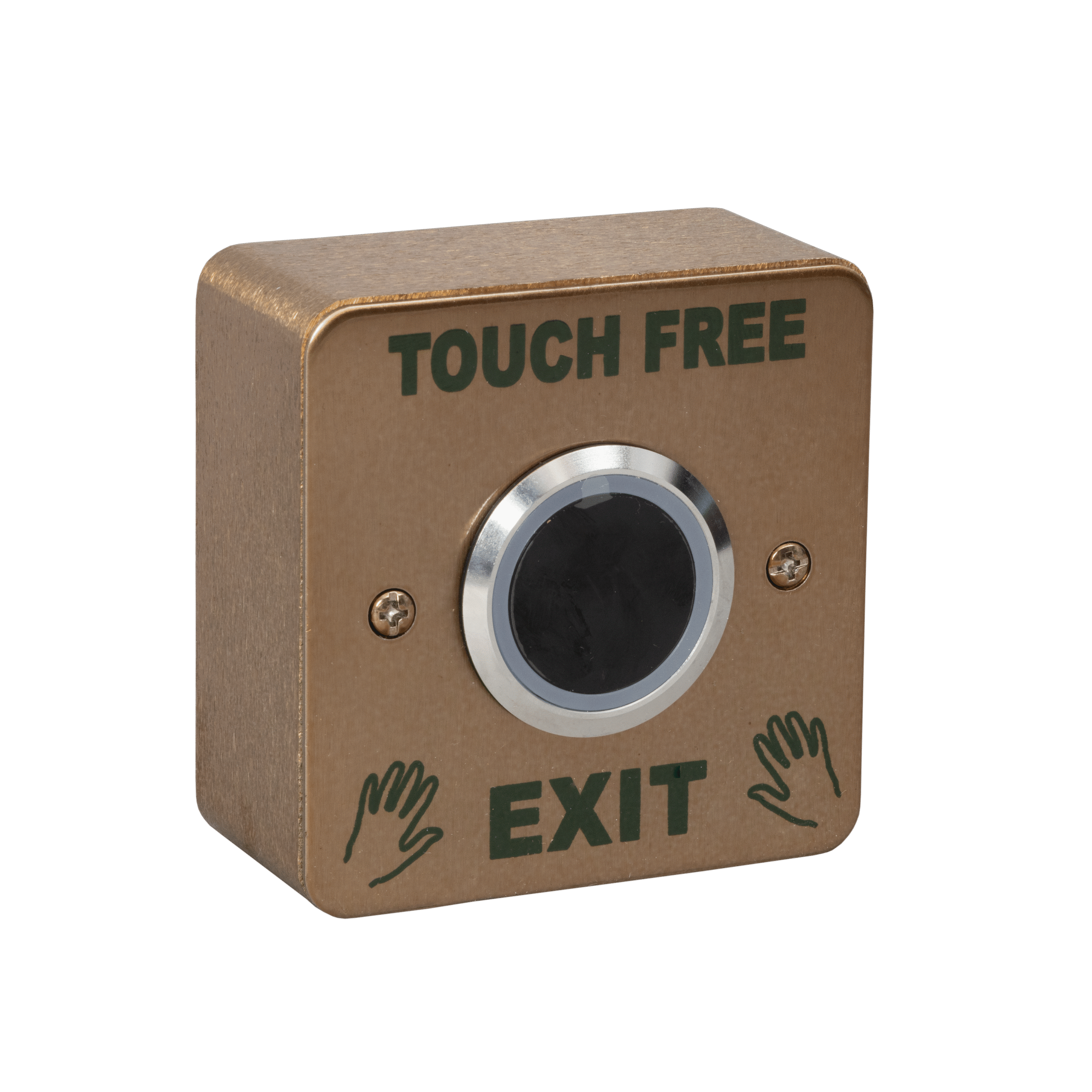

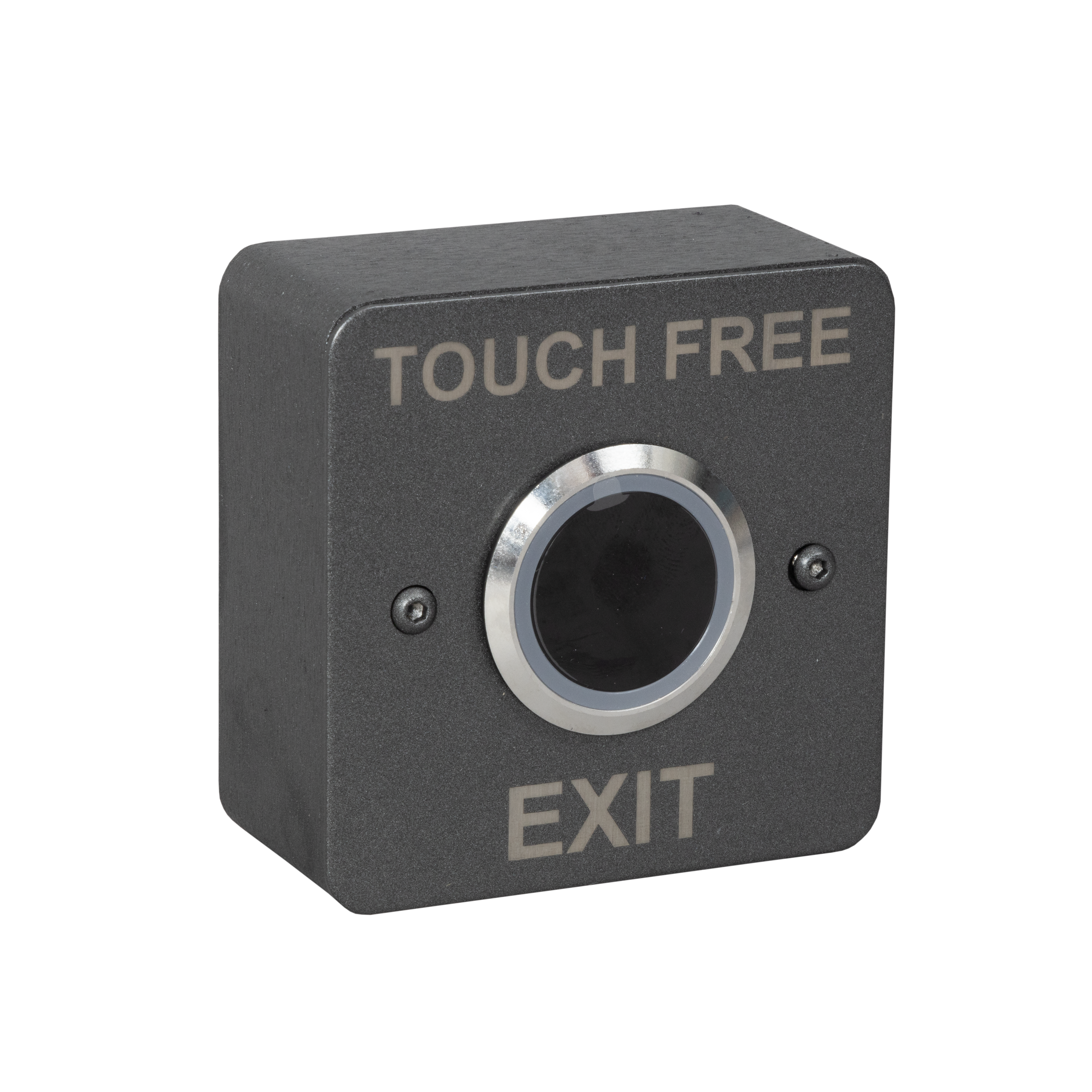

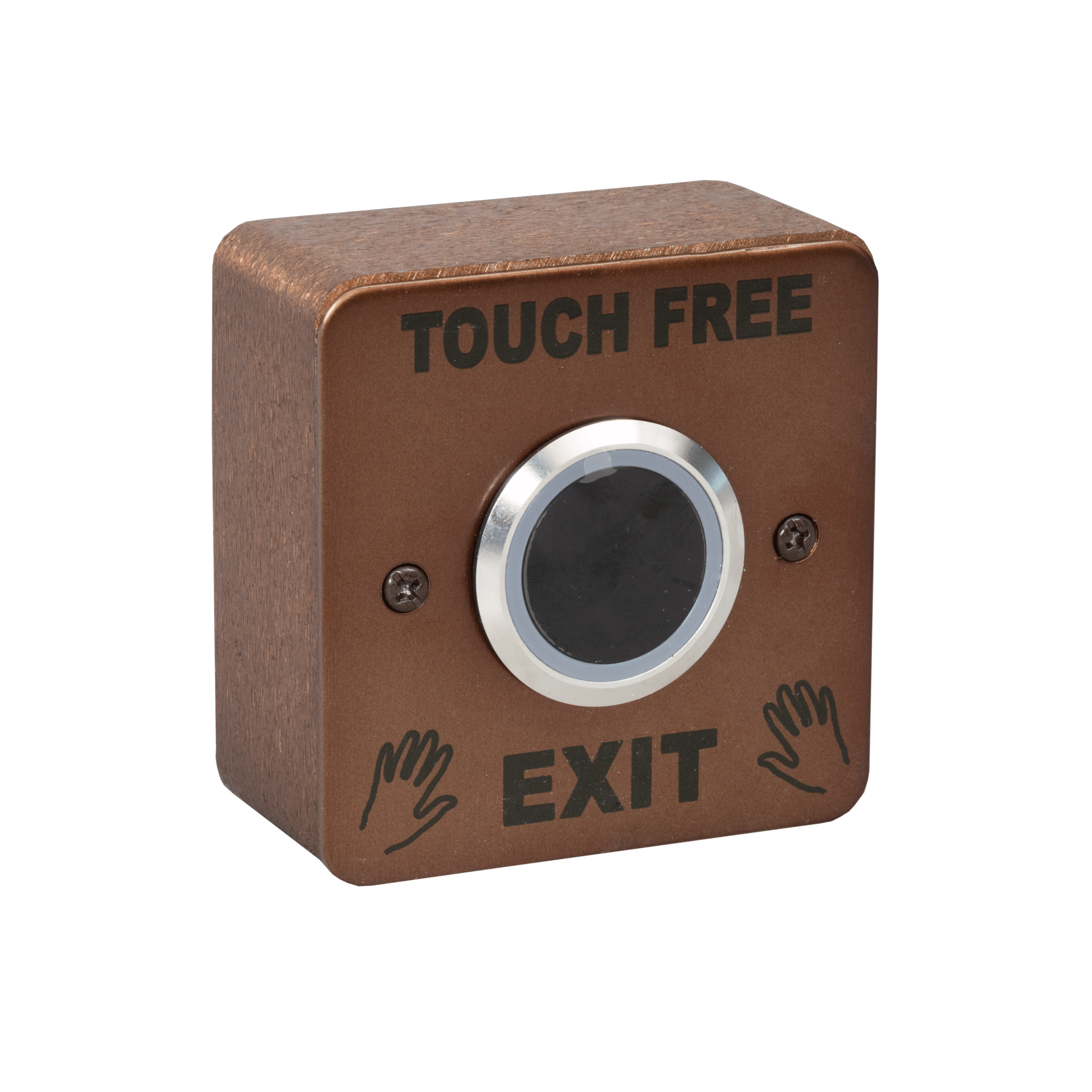

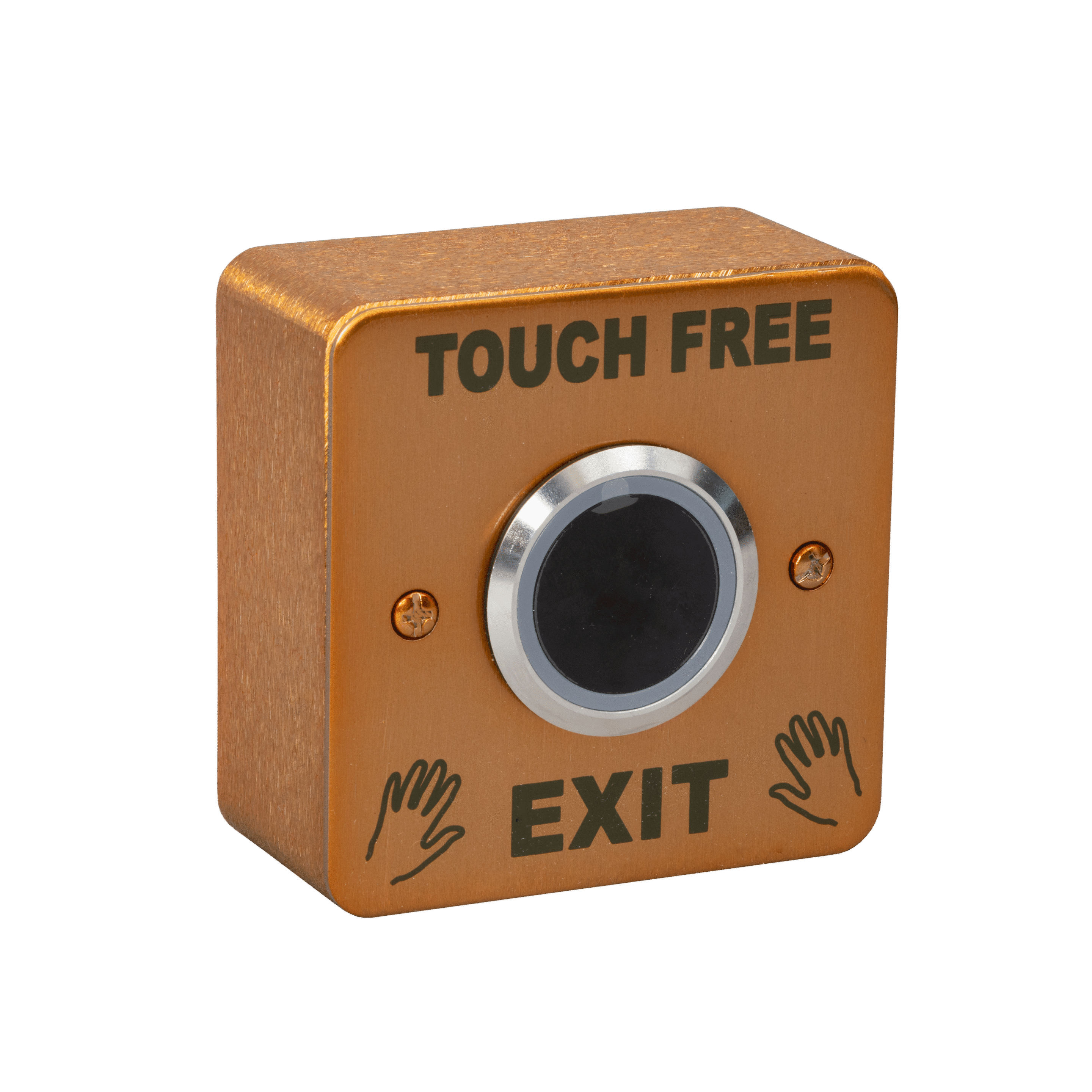

EBNT/TF-1 Touch Free Infra-Red Door Release With Illuminated Exit Sensor Button
Touch Free Double Pole Infra Red Exit Switch With Satin Copper Finish And Illuminated Green To Red Sensor Button
Price range: £35.00 through £62.50 exc VAT
- Contacts: Double pole NONC contacts
- Contact Load: 0.5A @ AC 120V / 1A @ DC24V
- Dual voltage 12/24 VDC @ 45mA operating
+/- 10% voltage tolerance - Etched legend (various options available)
- Security screws (allen key type)
- Button rated IP65 ingress protection
- Adjustable relay opening times (0.5 to 20 sec)
- Adjustable proximity distance (3 to 12 cm)
- -10° to +70° operating temperature
- Designed to prevent interference with other
infra red devices - Requires a permanent power supply - volt free contacts
Features
- 38mm Touch free sensor button
- Illumination - Green to red (or red to green)
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general / sensitive areas
- Screw footprint for flush fitting onto standard
back box - Distance between fixing holes 60mm
Dimensions
- 85x85x32 (mm)
- 238g (Boxed)
- 202g (Unboxed)
Contents
Touch free button on SS Plate
Back box
Wires & connector
Screw bag
Instructions
DATASHEET
Additional information
| Dimensions | 85 × 85 × 32 mm |
|---|---|
| RAL Colours | MATT BLACK, MATT BRONZE, DARK BRONZE, MID BRONZE, LIGHT BRONZE, SATIN COPPER, SATIN BRASS |
