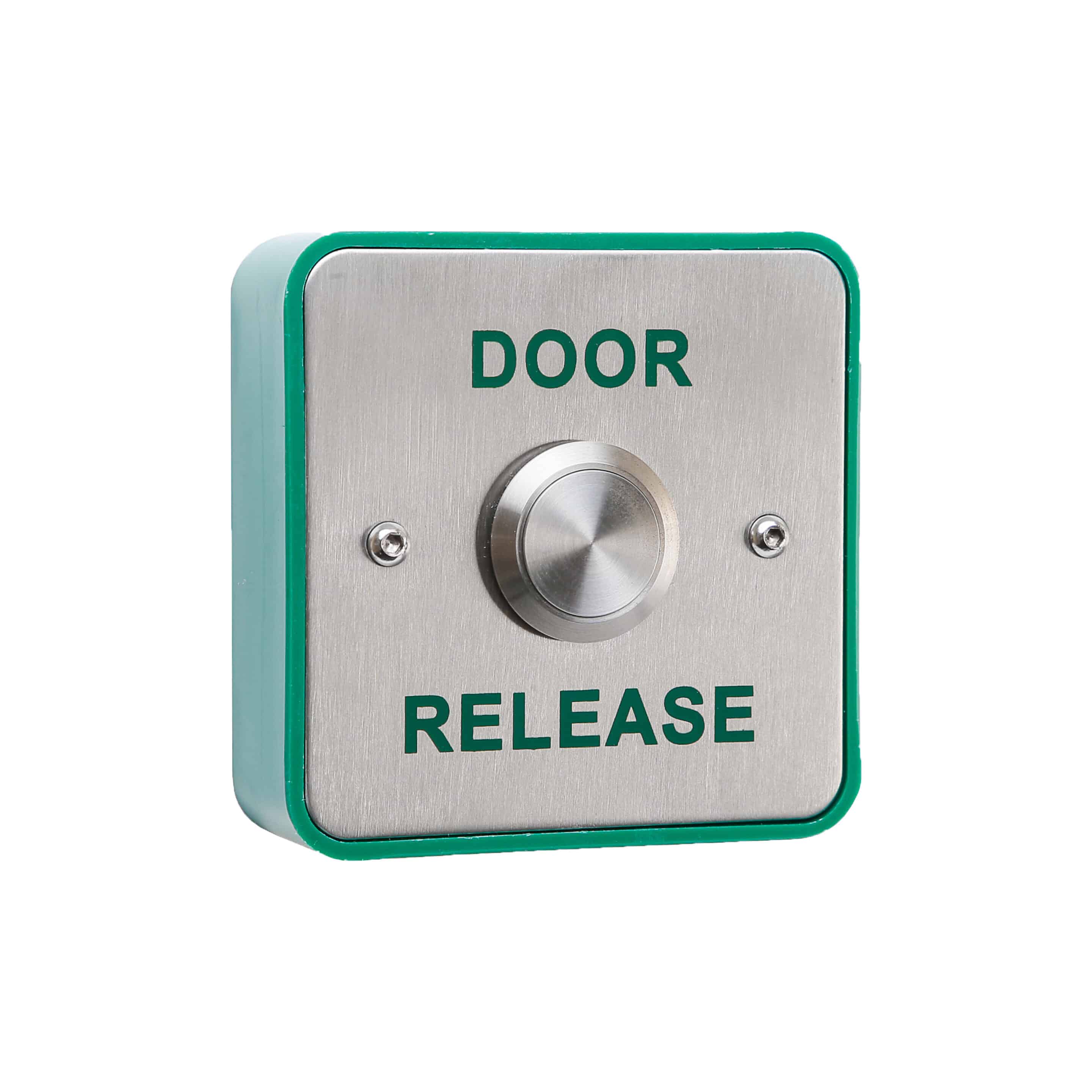

EBSS02/DR Green Door Release Stainless Steel Switch With Button
Green Plastic Double Pole Momentary Exit Switch With Stainless Steel Faceplate And 22Mm Stainless Steel Exit Button
£11.50 exc VAT
- Contacts: Double pole N/O - N/C
- Output: 4 AMP contact @ 30V AC/DC
- Wear resistant legend
- Security screws (allen key type)
- Internal use
- Button rated IP54 ingress protection
- Silver contacts
- Operating temperature -20° to +60°c
- Operating travel: 2mm
- Contact resistance: 10m OHM (Max)
- Operating life (mechanical): 1,000,000
Features
- Stainless steel button
- Momentary operation / contact
- High impact plastic back box
- Can be surface or flush fitting
- Easy clean surface
- Ideal for general / sensitive areas
- Screw footprint for flush fitting onto standard back box
- Distance between fixing holes 60mm
Dimensions
85x85x28 (mm)
240g (Boxed) 198g (Unboxed)
Contents
Stainless Steel Exit Button
Stainless Steel Plate (2mm)
2 Security Screws
Allen Key
Surface Box
DATASHEET
Additional information
| Dimensions | 85 × 85 × 28 mm |
|---|
