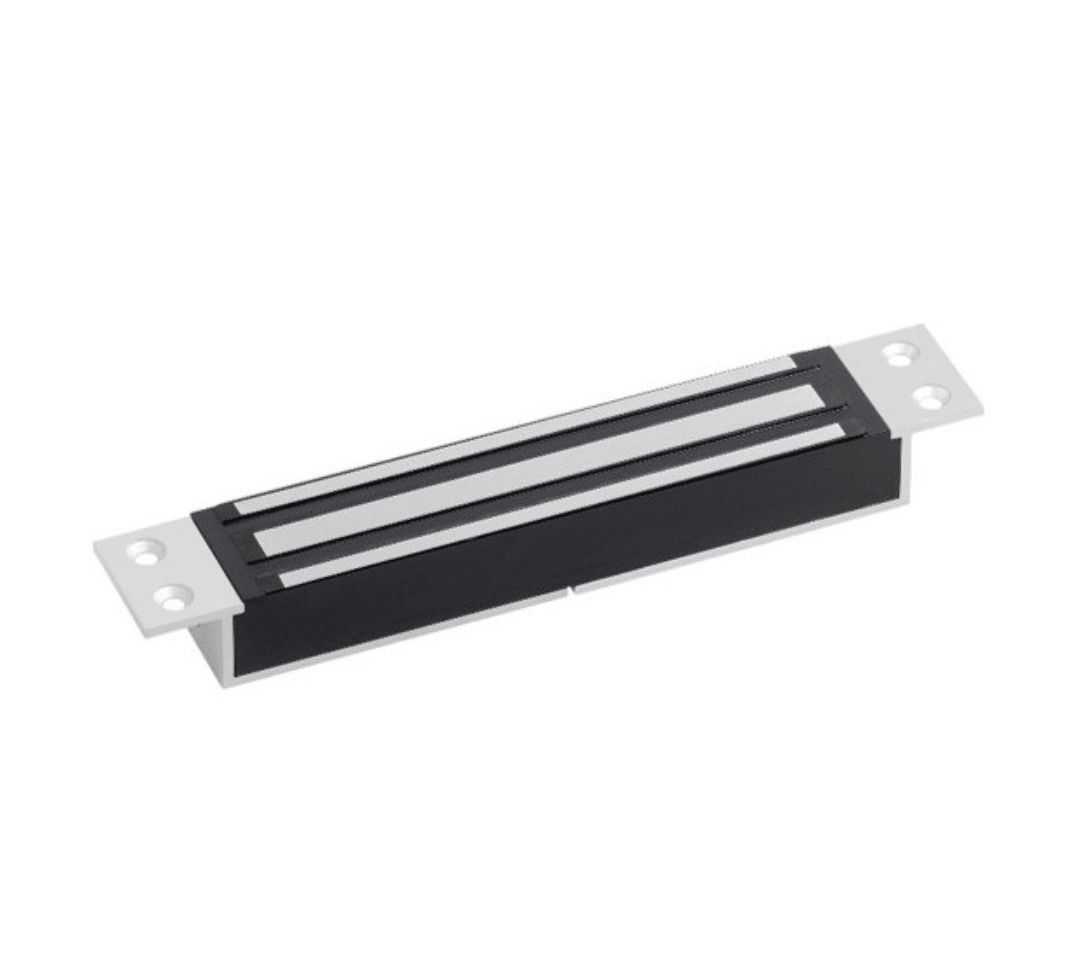

EM00R-FIRE Fire-Rated Mortice Maglock
Fire-Rated Monitored Mortice Fix Maglock With 275Kg Holding Force. Used To Achieve A Flush Finish Or With Slim Architectural Housings (Please Note Fire Rating Not Valid Once Fitted Within The Housing)
£69.00 exc VAT
- MOV provides spike and surge protection
- Fail safe operation (power to lock)
- Anti residual magnetism protection
- Armature plate and fixings included
- Slim design
- Suitable for slim architectural housings
- Mortice fix gives flush finish
- Lock monitoring
- Dual voltage 12Vdc or 24Vdc (selectable)
- Fire Rated when surface mounted ONLY
TECHNICAL INFORMATION
- Holding force: up to 275kg (600lb)
- Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc Voltage tolerance: +/- 15%
- Operating temp: -10°C to +55°C
- Humidity: 0-95% non-condensating
- Weight: 2kg approx.
- Relay: COM/NO/NC (1A@24Vdc)
DATASHEET
